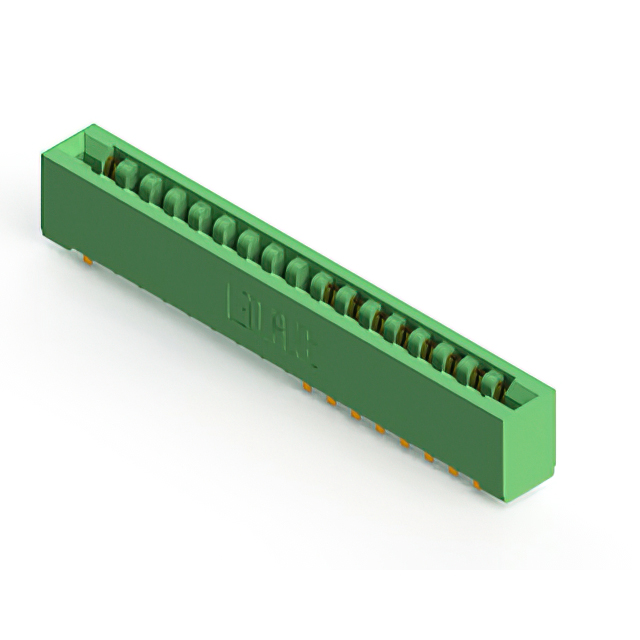

807-034-559-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-034-559-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-034-559-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 2 |
807-034 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Gender | Card Type | Flange Feature | Flange Feature | Flange Feature | Contact Type | Color | Contact Finish | Contact Material | Termination | Mounting Type | Termination Rows | Number of Positions | Pitch [x] | Pitch [x] | Features | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Single | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Semi Bellows | Green | Gold | Copper Alloy | Solder | Through Hole Right Angle | 2 | 34 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Semi Bellows | Green | Tin | Copper Alloy | Solder | Board Edge Straddle Mount | 2 | 34 | 0.156 in | 3.96 mm | Card Extender | 3.25 mm | 0.128 " | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Single | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Semi Bellows | Green | Gold | Copper Alloy | Solder | Through Hole Right Angle | 2 | 34 | 0.156 in | 3.96 mm | |||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Single | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Non Specified - Single Edge | Semi Bellows | Green | Gold | Copper Alloy | Solder | Through Hole | 1 | 34 | 0.156 in | 3.96 mm | 34 | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Dual | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Semi Bellows | Green | Gold | Copper Alloy | Wire Wrap | Through Hole | 2 | 34 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Semi Bellows | Green | Tin | Copper Alloy | Solder Eyelet(s) | Through Hole | 2 | 34 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | Diallyl Phthalate (DAP) | Single | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Semi Bellows | Green | Tin | Copper Alloy | Solder | Through Hole Right Angle | 2 | 34 | 0.156 in | 3.96 mm | |||||||||
EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Semi Bellows | Green | Tin | Copper Alloy | Solder | Through Hole Right Angle | 1 | 68 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | 34 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Dual | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Semi Bellows | Green | Gold | Copper Alloy | Solder | Through Hole Right Angle | 1 | 68 | 0.156 in | 3.96 mm | 34 | ||||||
EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Semi Bellows | Green | Tin | Copper Alloy | Wire Wrap | Through Hole | 2 | 34 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
807-034 Series
34 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
