HSC30014R4J

Active

TE Connectivity Passive Product

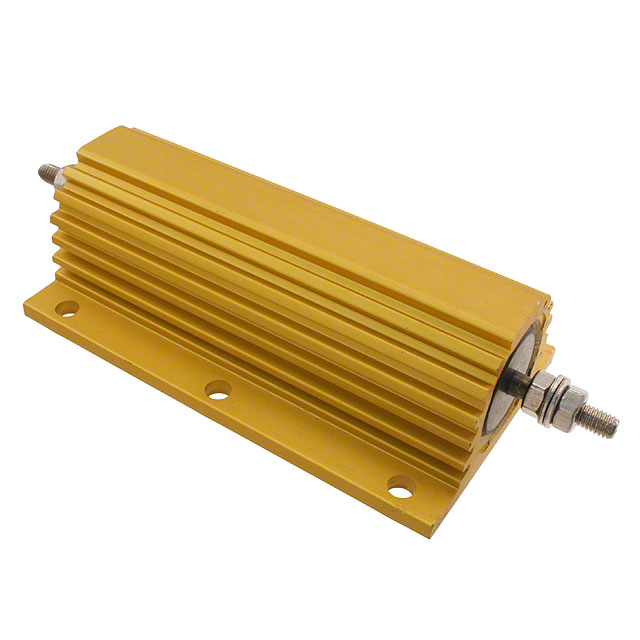

RES CHAS MNT 14.4 OHM 5% 300W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSC30014R4J

Active

TE Connectivity Passive Product

RES CHAS MNT 14.4 OHM 5% 300W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSC30014R4J

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Style	Terminal Screw Type
Mounting Feature	Flanges
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Power (Watts)	300 W
Resistance	14.4 Ohms
Size / Dimension [x]	5.039 "
Size / Dimension [x]	128 mm
Size / Dimension [y]	2.874 in
Size / Dimension [y]	73 mm
Temperature Coefficient	50 ppm/°C
Tolerance	5 %

HSC300 Series

Part	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Lead Style	Composition	Coating, Housing Type	Mounting Feature
TE Connectivity Passive Product HSC30014R4J	300 W	-55 °C	200 °C	42 mm	1.654 in	50 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	14.4 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC300330RJ	300 W	-55 °C	200 °C	42 mm	1.654 in	30 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	330 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC300R10J	300 W	-55 °C	200 °C	42 mm	1.654 in	50 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	0.1 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC300R32J	300 W	-55 °C	200 °C	42 mm	1.654 in	50 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	0.32 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC300100RJ	300 W	-55 °C	200 °C	42 mm	1.654 in	50 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	100 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC3004R7J	300 W	-55 °C	200 °C	42 mm	1.654 in	50 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	4.7 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC30039RJ	300 W	-55 °C	200 °C	42 mm	1.654 in	50 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	39 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC30022KJ	300 W	-55 °C	200 °C	42 mm	1.654 in	30 ppm/°C	5 %	2.811 in	5 in	127 mm	71.4 mm	22 kOhms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC3004K7J	300 W	-55 °C	200 °C	42 mm	1.654 in	30 ppm/°C	5 %	2.811 in	5 in	127 mm	71.4 mm	4.7 kOhms	Terminal Screw Type	Wirewound	Aluminum	Flanges
TE Connectivity Passive Product HSC30010RJ	300 W	-55 °C	200 °C	42 mm	1.654 in	50 ppm/°C	5 %	2.874 in	5.039 "	128 mm	73 mm	10 Ohms	Terminal Screw Type	Wirewound	Aluminum	Flanges

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.58
		10	$ 46.69
		25	$ 45.26
		50	$ 42.88
		100	$ 39.31

Description

General part information

HSC300 Series

14.4 Ohms ±5% 300W Wirewound Chassis Mount Resistor
