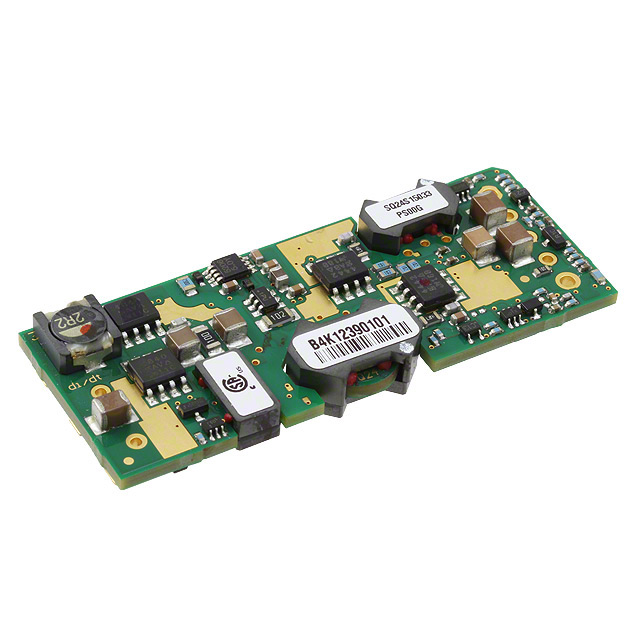

SQ24S15033-PS00G

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 50W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 50W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3.3V 50W

Part	Features	Control Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Efficiency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Type	Applications	Voltage - Isolation	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Bel Power Solutions SQ24S15033-PS00G	OCP, OTP, OVP, Remote On/Off, UVLO	Active High, Enable	18 V	3.3 V	Surface Mount	88 %	1/8 Brick, 8-SMD Module	85 °C	-40 °C	36 V	1	Isolated Module	ITE (Commercial)	2000 V	15 A	50 W	58.4 mm	7 mm	0.9 "	0.27 "	2.3 in	22.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	288	$ 76.57

General part information

Isolated Module DC DC Converter 1 Output 3.3V 15A 18V - 36V Input

Technical documentation and resources

No documents available
