General part information

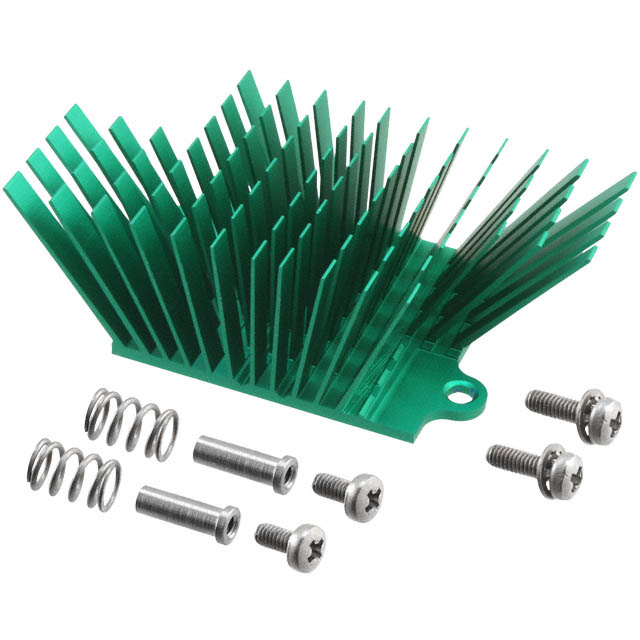

Heat Sinks Heat Sink, X-CUT, 2 Side Thermal Tape, Black Anodize, T412, 19x19x19.5mm
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | ATS-1043-C3-R0 | BGA Cross-Cut Series |
|---|---|---|
| Attachment Method | Push Pin | Thermal Tape, Adhesive (Included), Push Pin |
| Fin Height | 0.984 in | 0.374 - 0.984 in |
| Fin Height | 25 mm | 9.5 - 25 mm |
| Fin Height | - | 0.394 - 0.965 in |
| Fin Height | - | 10 - 24.5 mm |
| Length | 1.61 in | 0.748 - 1.673 in |
| Length | 40.89 mm | 19 - 45 mm |
| Length | - | 0.591 - 1.772 in |
| Length | - | 15 - 35 mm |
| Material | Aluminum | Aluminum |
| Material Finish | Green Anodized | Black Anodized, Green Anodized |
| Package Cooled | BGA | BGA |
| Shape | Rectangular, Angled Fins | Square, Fins, Pin Fins, Rectangular, Angled Fins |
| Thermal Resistance @ Forced Air Flow | 1.6 °C/W | 1.6 - 300 LFM |
| Type | Top Mount | Top Mount |
| Width | 45 mm | 15 - 45 mm |
| Width | - | 19 - 37.5 mm |
| Width | - | 0.748 - 1.476 in |
| Width | - | 17 - 40 mm |
| Width | - | 0.591 - 1.181 in |
| Width [x] | 1.772 in | 0.669 - 1.772 in |
Heat Sinks Heat Sink, X-CUT, 2 Side Thermal Tape, Black Anodize, T412, 19x19x19.5mm
| Part | Attachment Method | Thermal Resistance @ Forced Air Flow | Material Finish | Type | Fin Height | Fin Height | Package Cooled | Shape | Length | Length | Width [y] | Width [y] | Material | Fin Height [z] | Fin Height [z] | Width [x] | Width | Length [x] | Length [x] | Width [x] | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advanced Thermal Solutions Inc. ATS-55210R-C1-R0 | Thermal Tape, Adhesive (Included) | 8.4 °C/W, 200 LFM | Black Anodized | Top Mount | 0.768 in | 19.5 mm | BGA | Fins, Square | 0.827 in | 21 mm | 21 mm | 0.827 in | Aluminum | ||||||||
Advanced Thermal Solutions Inc. ATS-55350K-C1-R0 | Thermal Tape, Adhesive (Included) | 5.9 °C/W | Black Anodized | Top Mount | BGA | Pin Fins, Square | Aluminum | 0.571 in | 14.5 mm | 1.378 in | 35 mm | 1.378 in | 35 mm | ||||||||
Advanced Thermal Solutions Inc. ATS-1042-C3-R0 | Push Pin | 2.5 °C/W | Green Anodized | Top Mount | 0.59 " | 15 mm | BGA | Rectangular, Angled Fins | 1.61 in | 40.89 mm | Aluminum | 1.772 in | 45 mm | ||||||||
Advanced Thermal Solutions Inc. ATS-55330D-C1-R0 | Thermal Tape, Adhesive (Included) | 12.3 °C/W | Black Anodized | Top Mount | 0.374 in | 9.5 mm | BGA | Pin Fins, Square | 1.299 in | 32.99 mm | Aluminum | 1.299 in | 32.99 mm | ||||||||
Advanced Thermal Solutions Inc. ATS-55400W-C1-R0 | Thermal Tape, Adhesive (Included) | 2.6 °C/W, 200 LFM | Black Anodized | Top Mount | BGA | Pin Fins, Square | Aluminum | 0.965 in | 24.5 mm | 1.575 in | 40 mm | ||||||||||
Advanced Thermal Solutions Inc. ATS-55325R-C1-R0 | Thermal Tape, Adhesive (Included) | 4.6 °C/W, 200 LFM | Black Anodized | Top Mount | 0.768 in | 19.5 mm | BGA | Pin Fins, Square | 1.28 in | 32.51 mm | 32.51 mm | 1.28 in | Aluminum | ||||||||
Advanced Thermal Solutions Inc. ATS-55270W-C1-R0 | Thermal Tape, Adhesive (Included) | 4.5 °C/W, 200 LFM | Black Anodized | Top Mount | BGA | Pin Fins, Square | 1.063 in | 27 mm | 27 mm | 1.063 in | Aluminum | 0.965 in | 24.5 mm | ||||||||
Advanced Thermal Solutions Inc. ATS-1038-C1-R0 | Push Pin | 3.9 °C/W, 300 LFM | Green Anodized | Top Mount | BGA | Rectangular, Angled Fins | Aluminum | 0.394 in | 10 mm | 1.5 in | 38.1 mm | ||||||||||
Advanced Thermal Solutions Inc. ATS-55375R-C1-R0 | Thermal Tape, Adhesive (Included) | 3.9 °C/W, 200 LFM | Black Anodized | Top Mount | 0.768 in | 19.5 mm | BGA | Pin Fins, Square | 1.476 in | 37.5 mm | 37.5 mm | 1.476 in | Aluminum | ||||||||
Advanced Thermal Solutions Inc. ATS-1040-C3-R0 | Push Pin | 1.6 °C/W | Green Anodized | Top Mount | 0.984 in | 25 mm | BGA | Rectangular, Angled Fins | Aluminum | 1.5 in | 38.1 mm |
