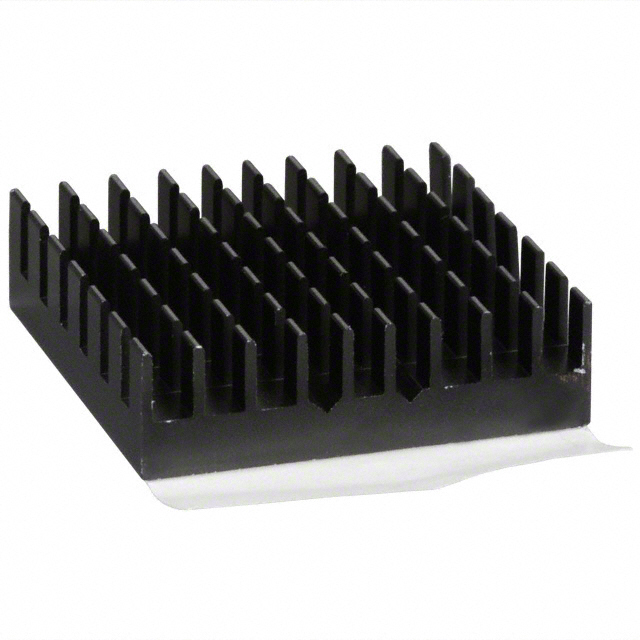

ATS-55330D-C1-R0 - ATS-55330D-C2-R0

ATS-55330D-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS BGA HEAT SINK, X-CUT, SQUARE PIN FIN, 2 SIDE THERMAL TAPE, BLACK, 33X33X9.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
ATS-55330D-C1-R0 - ATS-55330D-C2-R0

ATS-55330D-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS BGA HEAT SINK, X-CUT, SQUARE PIN FIN, 2 SIDE THERMAL TAPE, BLACK, 33X33X9.5MM

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-55330D-C1-R0
Attachment MethodThermal Tape, Adhesive (Included)
Fin Height0.374 in
Fin Height9.5 mm
Length32.99 mm
Length1.299 in
MaterialAluminum
Material FinishBlack Anodized
Package CooledBGA
ShapeSquare, Pin Fins
Thermal Resistance @ Forced Air Flow12.3 °C/W
TypeTop Mount
Width [x]32.99 mm
Width [x]1.299 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 9.24
10$ 8.18
25$ 7.79
50$ 7.51
100$ 7.24
300$ 6.83
500$ 6.64
1000$ 6.40
SagerN/A 1$ 8.44
5$ 7.87
10$ 7.62
25$ 7.16
50$ 6.75
100$ 6.30
500$ 6.14
TMEN/A 1$ 14.55
5$ 13.29
10$ 11.94
20$ 11.28
50$ 10.82

Description

General part information

ATS-55330D-C1-R0

Heat Sink BGA Aluminum Top Mount
