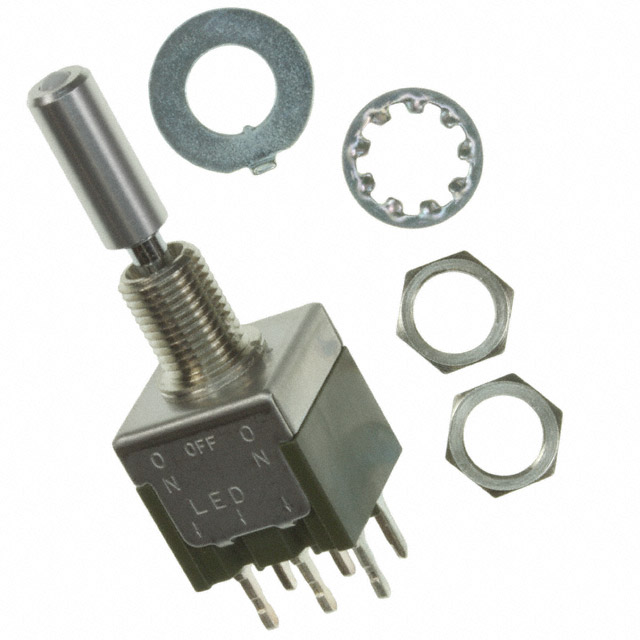

M2113TCFW03

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2113TCFW03

Actuator Length [x]	14.7 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	1.7 VDC, 2 VDC
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Termination Style	Voltage Rating - AC	Actuator Length [x]	Illumination Type, Color	Actuator Type	Electrical Life	Voltage Rating - DC	Features	Bushing Thread	Illumination Voltage (Nominal)	Switch Function	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Current Rating (Amps)	Illumination	Circuit	Panel Cutout Dimensions [diameter]
NKK Switches M2113TCFW02/M	Quick Connect - 0.062" (1.5mm)	125 V	14.7 mm	Green/Red LED	Standard Round	25000 Steps	30 V	Epoxy Sealed Terminals	1/4-40	1.7 VDC 2 VDC	On-Off-On	55 °C	-10 °C	3 A 6 A	Illuminated	SPDT	6.5 mm
NKK Switches M2113TCFW03	PC Pin	125 V	14.7 mm	Green/Red LED	Standard Round	25000 Steps	30 V	Epoxy Sealed Terminals	1/4-40	1.7 VDC 2 VDC	On-Off-On	55 °C	-10 °C	3 A 6 A	Illuminated	SPDT	6.5 mm
NKK Switches M2113TCW01	Solder Lug	125 V	14.7 mm	LED Red	Standard Round	25000 Steps	30 V	Epoxy Sealed Terminals	1/4-40	2.2 VDC	On-Off-On	55 °C	-10 °C	3 A 6 A	Illuminated	SPDT	6.5 mm
NKK Switches M2113TCFW01/M	Solder Lug	125 V	14.7 mm	Green/Red LED	Standard Round	25000 Steps	30 V	Epoxy Sealed Terminals	1/4-40	1.7 VDC 2 VDC	On-Off-On	55 °C	-10 °C	3 A 6 A	Illuminated	SPDT	6.5 mm
NKK Switches M2113TCW01/CUL	Solder Lug	125 V	14.7 mm	LED Red	Standard Round	25000 Steps	30 V	Epoxy Sealed Terminals	1/4-40	2.2 VDC	On-Off-On	55 °C	-10 °C	3 A 6 A	Illuminated	SPDT	6.5 mm
NKK Switches M2113TCFW01	Solder Lug	125 V	14.7 mm	Green/Red LED	Standard Round	25000 Steps	30 V	Epoxy Sealed Terminals	1/4-40	1.7 VDC 2 VDC	On-Off-On	55 °C	-10 °C	3 A 6 A	Illuminated	SPDT	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.72

General part information

Toggle Switch SPDT Panel Mount
