M2-A1-67-R-SMT-5.80-KA-T/R
ActiveAdam Tech

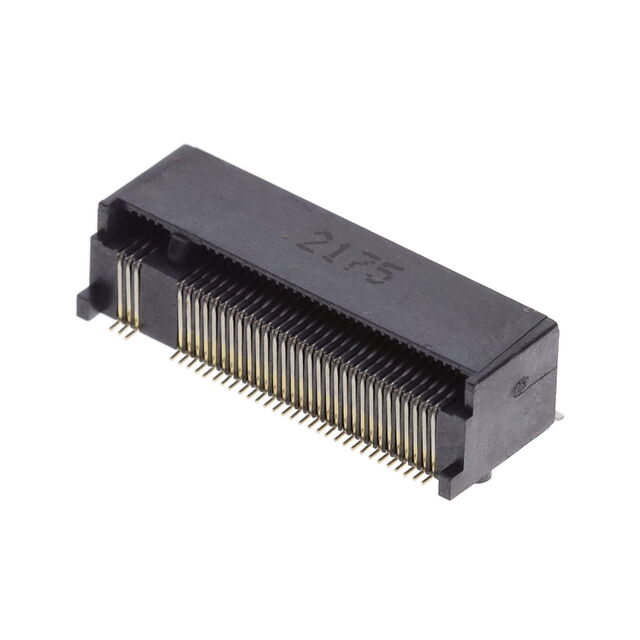

CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2-A1-67-R-SMT-5.80-KA-T/R
ActiveAdam Tech
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2-A1-67-R-SMT-5.80-KA-T/R |
|---|---|
| Card Thickness | 0.031 in |
| Card Thickness | 0.79 mm |
| Card Type | M.2 (NGFF) Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Features | Keyed, Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
M2-A1-67 Series
| Part | Card Type | Contact Finish | Material - Insulation | Contact Material | Mounting Type | Features | Gender | Number of Rows | Contact Finish Thickness | Color | Card Thickness | Card Thickness | Read Out | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | M.2 (NGFF) Mini Card | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Surface Mount Right Angle | Board Guide Keyed | Female | 2 | Flash | Black | 0.031 in | 0.79 mm | Dual | 0.5 mm | 0.02 in | 85 °C | -40 °C | 67 | Solder |
Adam Tech | M.2 (NGFF) Mini Card | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Surface Mount Right Angle | Board Guide Keyed | Female | 2 | Flash | Black | 0.031 in | 0.79 mm | Dual | 0.5 mm | 0.02 in | 85 °C | -40 °C | 67 | Solder |
Adam Tech | M.2 (NGFF) Mini Card | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Surface Mount Right Angle | Board Guide Keyed | Female | 2 | Flash | Black | 0.031 in | 0.79 mm | Dual | 0.5 mm | 0.02 in | 85 °C | -40 °C | 67 | Solder |
Adam Tech | M.2 (NGFF) Mini Card | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Surface Mount Right Angle | Board Guide Keyed | Female | 2 | Flash | Black | 0.031 in | 0.79 mm | Dual | 0.5 mm | 0.02 in | 85 °C | -40 °C | 67 | Solder |
Adam Tech | M.2 (NGFF) Mini Card | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Surface Mount Right Angle | Board Guide Keyed | Female | 2 | Flash | Black | 0.031 in | 0.79 mm | Dual | 0.5 mm | 0.02 in | 85 °C | -40 °C | 67 | Solder |
Adam Tech | M.2 (NGFF) Mini Card | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Surface Mount Right Angle | Board Guide Keyed | Female | 2 | Flash | Black | 0.031 in | 0.79 mm | Dual | 0.5 mm | 0.02 in | 85 °C | -40 °C | 67 | Solder |
Adam Tech | M.2 (NGFF) Mini Card | Gold | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Surface Mount Right Angle | Board Guide Keyed | Female | 2 | Flash | Black | 0.031 in | 0.79 mm | Dual | 0.5 mm | 0.02 in | 85 °C | -40 °C | 67 | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.84 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.46 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.25 | |||
| Digi-Reel® | 1 | $ 1.84 | ||
| 10 | $ 1.56 | |||
| 25 | $ 1.46 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.25 | |||
| Tape & Reel (TR) | 600 | $ 1.17 | ||
| 1200 | $ 1.11 | |||
| 1800 | $ 1.08 | |||
| 3000 | $ 1.04 | |||
| 4200 | $ 1.02 | |||
| 6000 | $ 0.99 | |||
Description
General part information
M2-A1-67 Series
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
