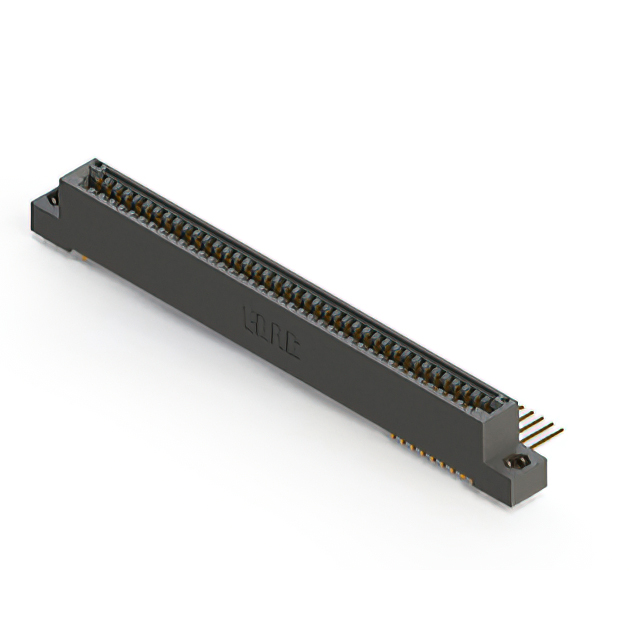

895-080-558-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-080-558-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-080-558-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-080 Series

...

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Flange Feature	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Read Out	Number of Positions/Bay/Row [custom]	Gender	Number of Rows	Color	Contact Material	Mounting Type	Contact Type	Material - Insulation	Pitch [x]	Pitch [x]	Features	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 895-080-544-802	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 in	Wire Wrap	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in
EDAC Inc. 895-080-541-502	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 in	Wire Wrap	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in
EDAC Inc. 895-080-555-201	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Solder	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Board Edge Straddle Mount	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in	Card Extender
EDAC Inc. 895-080-540-212	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Wire Wrap	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in		3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 895-080-558-808	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Solder	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole Right Angle	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in			4-40 Threaded Insert Top Mount Opening
EDAC Inc. 895-080-558-207	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Solder	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole Right Angle	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 895-080-556-202	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Solder	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Board Edge Straddle Mount	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in	Card Extender	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 895-080-524-803	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Solder	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in		2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 895-080-558-208	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Solder	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole Right Angle	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 895-080-500-208	80	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in			Solder Eyelet(s)	125 °C	-40 °C	Gold	Dual	40	Female	2	Black	Copper Alloy	Through Hole	Cantilever	Polyphenylene Sulfide (PPS)	2.54 mm	0.1 in			4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 99.99
Newark	Each	1	$ 120.00
		100	$ 79.64
		250	$ 67.91
		500	$ 62.18
		1000	$ 52.13

Description

General part information

895-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
