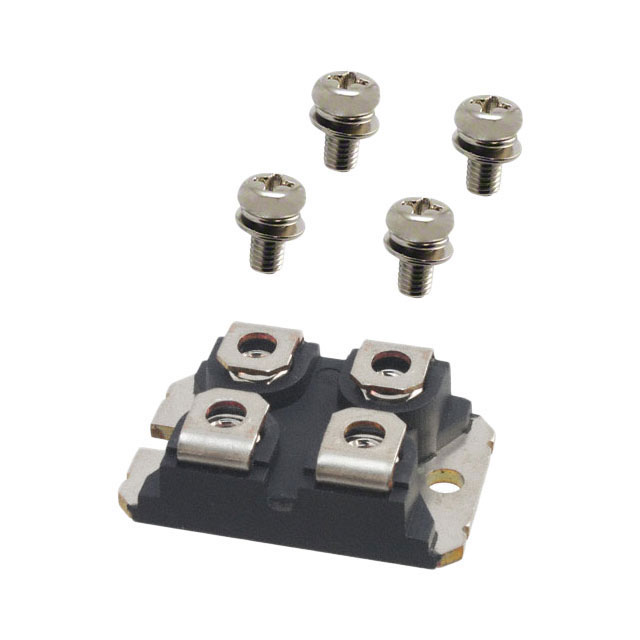

Specification	APT65GP60JDQ2

Configuration	Single
Current - Collector (Ic) (Max)	130 A
Current - Collector Cutoff (Max)	1.25 mA
IGBT Type	PT
Input	Standard
Input Capacitance (Cies) @ Vce	7.4 nF
Mounting Type	Chassis Mount
Package / Case	ISOTOP
Package Name	ISOTOP®
Power - Max	431 W
Vce(on) (Max)	2.7 V
Voltage - Collector Emitter Breakdown (Max)	600 V

APT65GP60 Series

Part	Voltage - Collector Emitter Breakdown (Max)	Input	Power - Max	IGBT Type	Input Capacitance (Cies) @ Vce	Package Name	Configuration	Current - Collector (Ic) (Max)	Vce(on) (Max)	Mounting Type	Current - Collector Cutoff (Max)	Package / Case	Switching Energy (Off)	Switching Energy (On)	Td (off) @ 25°C	Td (on) @ 25°C	Operating Temperature (Min)	Operating Temperature (Max)	Current - Collector Pulsed (Icm)	Input Type	Gate Charge	Test Condition Voltage	Test Condition Current	Test Condition Voltage (Secondary)	Test Condition Resistance
Microchip Technology APT65GP60JDQ2	600 V	Standard	431 W	PT	7.4 nF	ISOTOP®	Single	130 A	2.7 V	Chassis Mount	1.25 mA	ISOTOP
Microchip Technology APT65GP60L2DQ2G	600 V		833 W	PT				198 A	2.7 V	Through Hole		TO-264-3 TO-264AA	895 µJ	605 µJ	90 ns	30 ns	-55 °C	150 °C	250 A	Standard	210 nC	400 V	65 A	15 V	5 Ohm
Microchip Technology APT65GP60B2G	600 V		833 W	PT				100 A	2.7 V	Through Hole		TO-247-3 Variant	896 µJ	605 µJ	91 ns	30 ns	-55 °C	150 °C	250 A	Standard	210 nC	400 V	65 A	15 V	5 Ohm
Microchip Technology APT65GP60J	600 V	Standard	431 W	PT	7.4 nF	ISOTOPÛ	Single	130 A	2.7 V	Chassis Mount	1 mA	miniBLOC SOT-227-4					-55 °C	150 °C
