88190-8

Active

TE Connectivity AMP Connectors

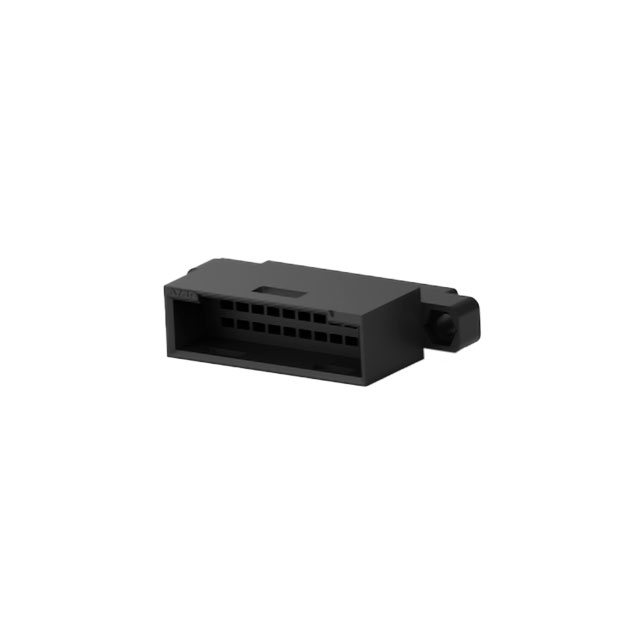

CONN FFC PIN HSG 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

88190-8

Active

TE Connectivity AMP Connectors

CONN FFC PIN HSG 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.67
		10	$ 2.38
		25	$ 2.37
		50	$ 2.35
		100	$ 2.14

Description

General part information

88190 Series

Housing FFC, Discrete Wire Housing for Male Contacts Connector Detent Lock 20Pos 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	88190-8	88190 Series

Connector Type	Housing for Male Contacts	Housing for Male Contacts
Current Rating (Amps)	1.5 A	1.5 A
Features	Positions Stamped, Flange	Positions Stamped, Flange
FFC, FCB Thickness	0.015 mm	0.015 mm
Flat Flex Type	FFC, Discrete Wire	FFC, Discrete Wire
Housing Color	Black	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Insulation Diameter [Max]	1.75 mm	1.75 mm
Insulation Diameter [Max]	0.069 in	0.069 in
Insulation Diameter [Min]	0.061 in	0.061 in
Insulation Diameter [Min]	1.55 mm	1.55 mm
Locking Feature	Detent Lock	Detent Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Note	Contacts Not Included	Contacts Not Included
Number of Positions	20	10 - 38
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	22 AWG	22 AWG

88190 Series

CONN FFC PIN HSG 10POS 2.54MM

Part	Connector Type	Voltage Rating	Current Rating (Amps)	Wire Gauge [Max]	Wire Gauge [Min]	Note	Locking Feature	Number of Rows	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	FFC, FCB Thickness	Housing Color	Material Flammability Rating	Features	Number of Positions	Housing Material	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 3-88190-0	Housing for Male Contacts	300 VDC	1.5 A	24 AWG	22 AWG	Contacts Not Included	Detent Lock	2	1.75 mm	0.061 in	1.55 mm	0.069 in	0.015 mm	Black	UL94 V-0	Flange, Positions Stamped	10	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	-65 ░C	105 ░C	2.54 mm	0.1 in
TE Connectivity AMP Connectors 88190-6	Housing for Male Contacts	300 VDC	1.5 A	24 AWG	22 AWG	Contacts Not Included	Detent Lock	2	1.75 mm	0.061 in	1.55 mm	0.069 in	0.015 mm	Black	UL94 V-0	Flange, Positions Stamped	18	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	-65 ░C	105 ░C	2.54 mm	0.1 in
TE Connectivity AMP Connectors 88190-8	Housing for Male Contacts	300 VDC	1.5 A	24 AWG	22 AWG	Contacts Not Included	Detent Lock	2	1.75 mm	0.061 in	1.55 mm	0.069 in	0.015 mm	Black	UL94 V-0	Flange, Positions Stamped	20	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	-65 ░C	105 ░C	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-88190-0	Housing for Male Contacts	300 VDC	1.5 A	24 AWG	22 AWG	Contacts Not Included	Detent Lock	2	1.75 mm	0.061 in	1.55 mm	0.069 in	0.015 mm	Black	UL94 V-0	Flange, Positions Stamped	24	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	-65 ░C	105 ░C	2.54 mm	0.1 in
TE Connectivity AMP Connectors 88190-2	Housing for Male Contacts	300 VDC	1.5 A	24 AWG	22 AWG	Contacts Not Included	Detent Lock	2	1.75 mm	0.061 in	1.55 mm	0.069 in	0.015 mm	Black	UL94 V-0	Flange, Positions Stamped	38	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	-65 ░C	105 ░C	2.54 mm	0.1 in
