1410147-1

Active

TE Connectivity AMP Connectors

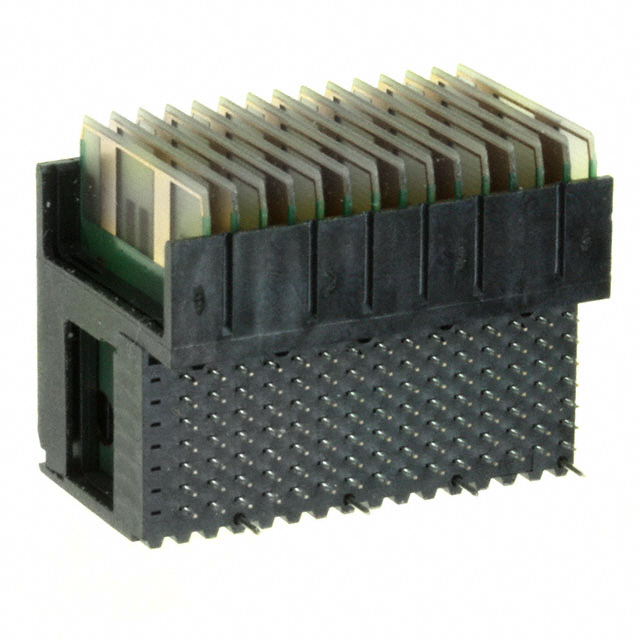

CONN PLUG VITA41 105POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA41 105POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410147-1

Color	Black
Connector Style	VITA 41, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	8, 37, 30
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	15
Number of Positions	105
Number of Positions Loaded	All
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Solder

CONN PLUG VITA41 105POS EDGE MNT

Part	Connector Usage	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Features	Connector Type	Contact Layout, Typical	Termination	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Style	Material Flammability Rating	Mounting Type	Color	Number of Positions	Number of Columns
TE Connectivity AMP Connectors 1410147-1	Daughtercard	0.071 in	1.8 mm	105 ░C	-55 °C	Gold	Board Guide	Plug, Male Blades	8, 30, 37	Solder	All	0.76 Ám	30 Áin	7	Center, VITA 41	UL94 V-0	Board Edge, Right Angle, Through Hole	Black	105	15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

105 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 41, Center
