CPDER5V0

Active

Comchip Technology

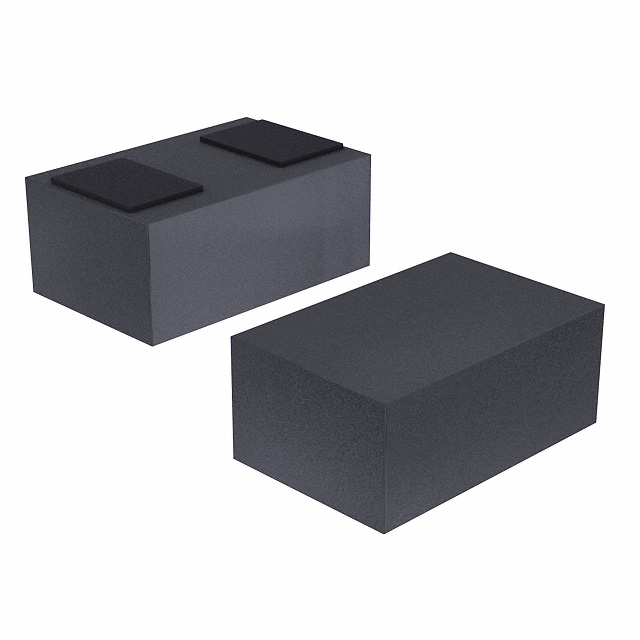

TVS DIODE 5VWM 15VC 0503/SOD723F

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 5VWM 15VC 0503/SOD723F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDER5V0	CPDER5 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	-	25 - 90 pF
Current - Peak Pulse (10/1000µs)	5 A	5 - 16 A
Mounting Type	Surface Mount	Surface Mount
Power - Peak Pulse	75 W	75 - 200 W
Power Line Protection	False	False
Supplier Device Package	0503/SOD-723F	0503/SOD-723F
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min) [Min]	5.1 V	5.1 - 6.1 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V	12.5 - 15 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

ESD SUPPRESSOR DIODE TVS BI-DIR 5V 15VC 2-PIN SOD-723F T/R

Part	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Bidirectional Channels [custom]	Applications	Current - Peak Pulse (10/1000µs)	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Type	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Capacitance @ Frequency	Unidirectional Channels [custom]
Comchip Technology CPDER5V0-HF	5 V	75 W	1	General Purpose	5 A	Surface Mount	15 V	Zener	5.1 V	0503/SOD-723F
Comchip Technology CPDER5V0	5 V	75 W	1	General Purpose	5 A	Surface Mount	15 V	Zener	5.1 V	0503/SOD-723F
Comchip Technology CPDER5V0U	5 V	200 W		General Purpose	16 A	Surface Mount	12.5 V	Zener	6 V	0503/SOD-723F	90 pF	1
Comchip Technology CPDER5V0C-HF	5 V		1	General Purpose		Surface Mount		Zener	6.1 V	0503/SOD-723F	25 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 0503/SOD-723F

Technical documentation and resources

No documents available
