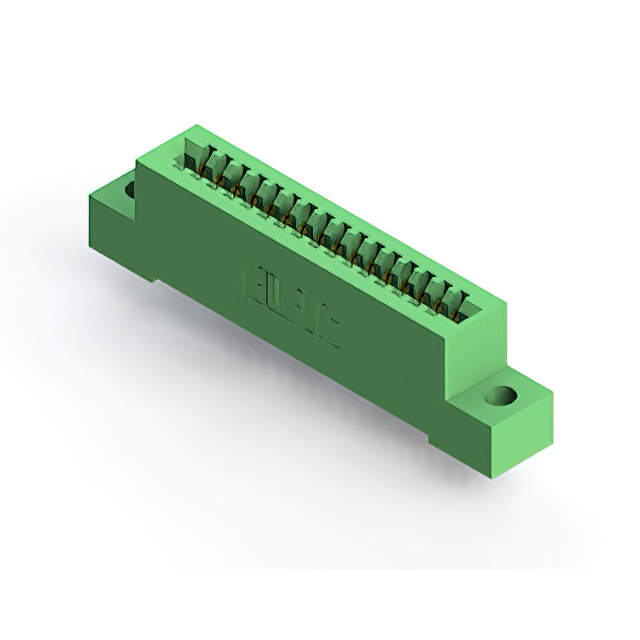

342-016-520-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 16POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-016-520-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 16POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-016-520-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
342-016 Series
...
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Type | Color | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Termination | Number of Positions | Number of Rows | Contact Material | Number of Positions/Bay/Row [custom] | Features | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Eyelet(s) | 16 | 1 | Copper Alloy | 16 | ||||
EDAC Inc. | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 2.54 mm | 0.1 in | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Wire Wrap | 16 | 1 | Copper Alloy | 16 | |||||||
EDAC Inc. | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Dual Edge | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 16 | 2 | Copper Alloy | Card Extender | 8 | 8 | 8 | |||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 16 | 1 | Copper Alloy | 16 | ||||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Dual Edge | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2.54 mm | 0.1 in | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Wire Wrap | 16 | 2 | Copper Alloy | 8 | 8 | 8 | ||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 16 | 1 | Copper Alloy | 16 | ||||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Dual Edge | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 2.54 mm | 0.1 in | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Wire Wrap | 16 | 2 | Copper Alloy | 8 | 8 | 8 | |||||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Wire Wrap | 16 | 1 | Copper Alloy | 16 | ||||
EDAC Inc. | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Dual Edge | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2.54 mm | 0.1 in | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 16 | 2 | Copper Alloy | Card Extender | 8 | 8 | 8 | |
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2.54 mm | 0.1 in | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 16 | 1 | Copper Alloy | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.76 | |
Description
General part information
342-016 Series
16 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
Documents
Technical documentation and resources
