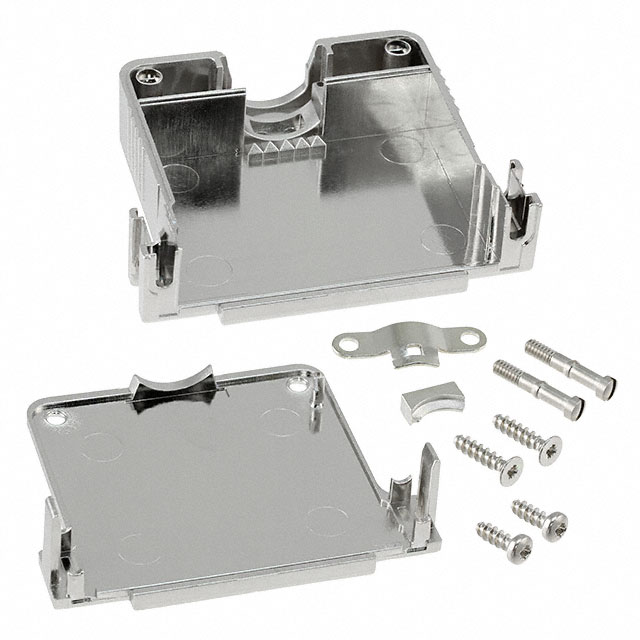

Specification	165X13499X

Accessory Type	Two Piece Backshell
Cable Exit Angle	180 °
Cable Type	Round
Compatible D-Sub Size	HD62pos, 37pos
Compatible Shell Size	C
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Metallized, Plastic
Number of Positions	37 pos
Primary Material	Plastic
Shielding	Shielded

165X134 Series

Part	Accessory Type	Material	Features	Hardware	Cable Exit Angle	Color	Shielding	Number of Positions	Compatible Shell Size	Primary Material	Cable Type	Compatible D-Sub Size
McGill Microwave Systems 165X13489XE	Two Piece Backshell	Metallized Plastic	Mating Screws 4-40	Assembly Hardware Cable Clamp	180 °	Silver	Shielded	25	B	Plastic	Round	25pos HD44pos
McGill Microwave Systems 165X13449XE	Two Piece Backshell	Polybutylene Terephthalate (PBT)	Mating Screws 4-40	Assembly Hardware Strain Relief	90 °	Black	Unshielded	37 pos	C	Plastic	Round	37pos HD62pos
McGill Microwave Systems 165X13419XE	Two Piece Backshell	Polybutylene Terephthalate (PBT)	Mating Screws 4-40	Assembly Hardware Strain Relief	90 °	Black	Unshielded	9	E	Plastic	Round	9pos HD15pos

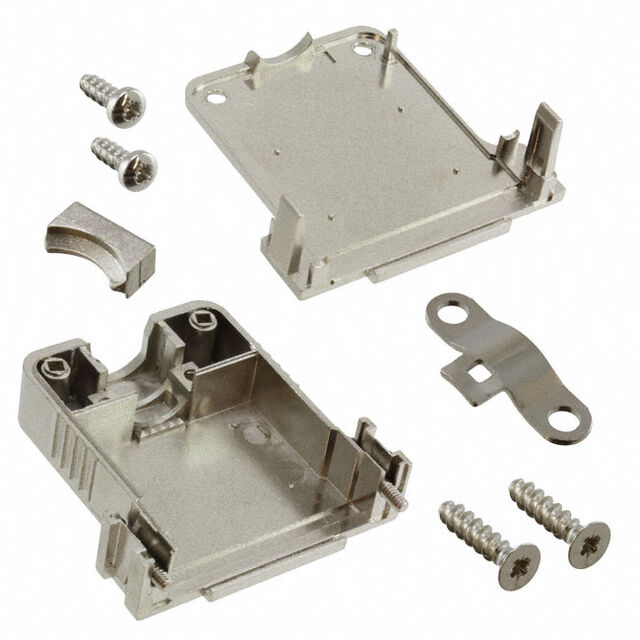

McGill Microwave Systems 165X13489X	Two Piece Backshell	Metallized Plastic	Mating Screws 4-40	Assembly Hardware Cable Clamp	180 °	Silver	Shielded	25	B	Plastic	Round	25pos HD44pos
McGill Microwave Systems 165X13499X	Two Piece Backshell	Metallized Plastic	Mating Screws 4-40	Assembly Hardware Strain Relief	180 °		Shielded	37 pos	C	Plastic	Round	37pos HD62pos
McGill Microwave Systems 165X13459XE	Two Piece Backshell	Polybutylene Terephthalate (PBT)	Mating Screws 4-40	Assembly Hardware Strain Relief	90 °	Black	Unshielded	50	D	Plastic	Round	50pos HD78pos
McGill Microwave Systems 165X13479X	Two Piece Backshell	Metallized Plastic	Mating Screws 4-40	Assembly Hardware Cable Clamp	180 °	Silver	Shielded	15	A	Plastic	Round	15pos HD26pos
McGill Microwave Systems 165X13439XE	Two Piece Backshell	Polybutylene Terephthalate (PBT)	Mating Screws 4-40	Assembly Hardware Strain Relief	90 °	Black	Unshielded	25	B	Plastic	Round	25pos HD44pos
McGill Microwave Systems 165X13469X	Two Piece Backshell	Metallized Plastic	Mating Screws 4-40	Assembly Hardware Strain Relief	180 °		Shielded	9	E	Plastic	Round	9pos HD15pos

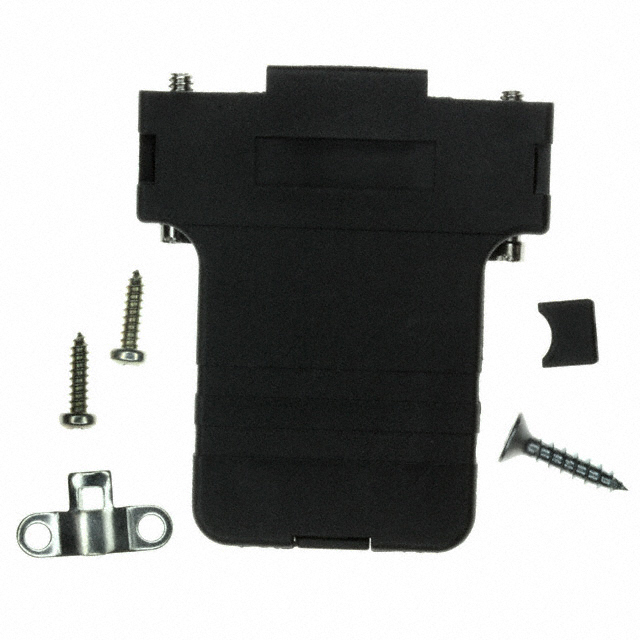

McGill Microwave Systems 165X13429XE	Two Piece Backshell	Polybutylene Terephthalate (PBT)	Mating Screws 4-40	Assembly Hardware Strain Relief	90 °	Black	Unshielded	15	A	Plastic	Round	15pos HD26pos

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

165X13499X | Datasheet
