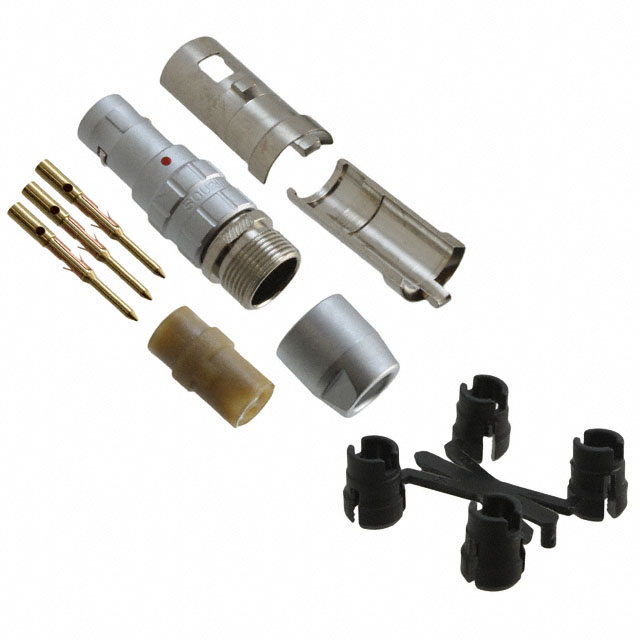

Specification	JBXFD0G03MCSDSR

Applications	Telecommunications, Instrumentation, Industrial, Medical
Backshell Material	Brass
Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	19.7 µin
Current Rating	8 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP40
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	G
Plating	Chrome over Nickel
Primary Material	Metal
Shell Finish	Chrome, Nickel
Shell Material	Brass
Shell Size - Insert	0
Shell Size - Insert	0
Shielding	Shielded
Termination	Crimp
Voltage Rating	600 V

JBXFD0G Series

Part	Contact Finish - Mating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Shielding	Contact Finish Thickness - Mating	Features	Applications	Shell Finish	Insert Material	Mounting Type	Shell Material	Connector Type	Termination	Ingress Protection	Number of Positions	Orientation	Plating	Backshell Material	Color	Fastening Type	Material Flammability Rating	Primary Material
Amphenol Aerospace Operations JBXFD0G07MSS35PR	Gold	2.5 A	125 °C	-40 °C	320 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	7	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02MCSDSMR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Crimp	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G04MSSDSR	Gold	7 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	4	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G04MSS35SR	Gold	7 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	4	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02FCSDSMR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Female Sockets Plug	Crimp	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G05MSSDSR	Gold	6.5 A	125 °C	-40 °C	400 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	5	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02MSSDSR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G03MCSDSMR	Gold	8 A	125 °C	-40 °C	600 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Crimp	IP40	3	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02FCSDSR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Female Sockets Plug	Crimp	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G04MCSDSMR	Gold	7 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Crimp	IP40	4	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
