JBXFD0G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG MALE 7P GOLD SLDR CUP

Part	Contact Finish - Mating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Shielding	Contact Finish Thickness - Mating	Features	Applications	Shell Finish	Insert Material	Mounting Type	Shell Material	Connector Type	Termination	Ingress Protection	Number of Positions	Orientation	Plating	Backshell Material	Color	Fastening Type	Material Flammability Rating	Primary Material
Amphenol Aerospace Operations JBXFD0G07MSS35PR	Gold	2.5 A	125 °C	-40 °C	320 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	7	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02MCSDSMR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Crimp	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G04MSSDSR	Gold	7 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	4	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G04MSS35SR	Gold	7 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	4	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02FCSDSMR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Female Sockets Plug	Crimp	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal

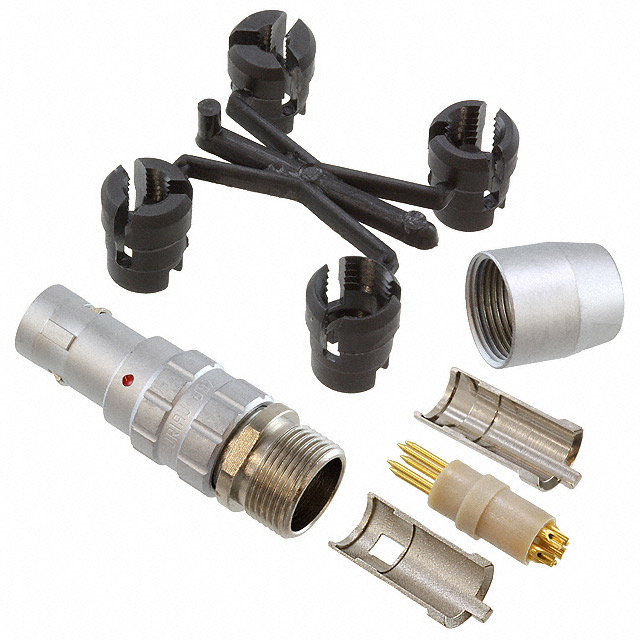

Amphenol Aerospace Operations JBXFD0G05MSSDSR	Gold	6.5 A	125 °C	-40 °C	400 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	5	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02MSSDSR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Solder Cup	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal

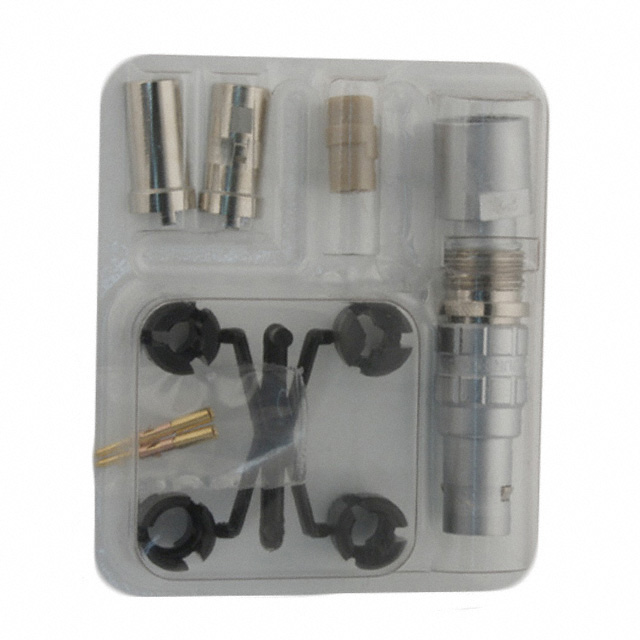

Amphenol Aerospace Operations JBXFD0G03MCSDSMR	Gold	8 A	125 °C	-40 °C	600 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Crimp	IP40	3	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G02FCSDSR	Gold	10 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Female Sockets Plug	Crimp	IP40	2	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
Amphenol Aerospace Operations JBXFD0G04MCSDSMR	Gold	7 A	125 °C	-40 °C	660 V	Shielded	19.7 µin	Backshell Boot Adapter	Industrial Instrumentation Medical Telecommunications	Chrome Nickel	PEEK Polyetheretherketone	Free Hanging (In-Line)	Brass	Male Pins Plug	Crimp	IP40	4	G	Chrome over Nickel	Brass	Silver	Push-Pull	UL94 V-0	Metal
