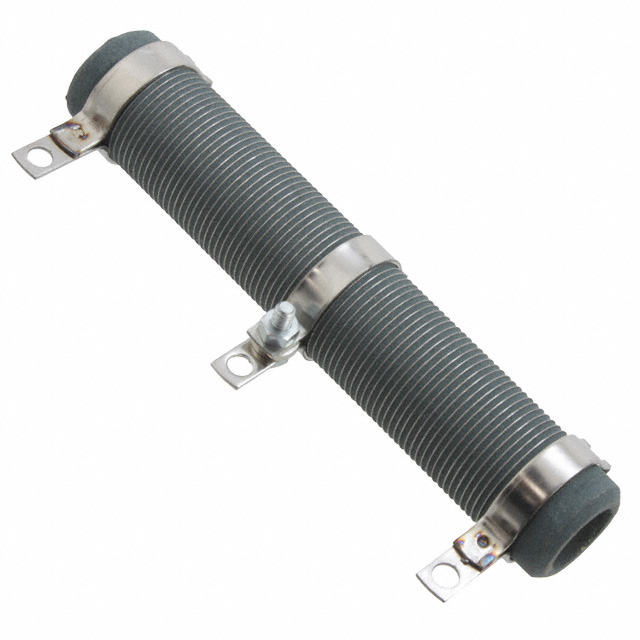

RSSD Series

Part	Resistance	Termination	Diameter (Width)	Diameter (Length)	Diameter (Outer)	Diameter (Inner)	Mounting Type	Tolerance	Package Leads	Package Name	Adjustment Type	Length	Power (Watts)
Vishay Dale RSSD20117A1000JB00	100 Ohms	Solder Lug	12.6 mm	22 mm	0.866 in	0.496 in	Chassis Mount	5 %	3 Leads	Radial	Slide	4.606 "	100 W
Vishay Dale RSSD20117A22R0JB15	22 Ohm	Solder Lug	12.6 mm	22 mm	0.866 in	0.496 in	Chassis Mount	5 %	3 Leads	Radial	Slide	4.606 "	100 W
Vishay Dale RSSD25138C33R0JB00	33 Ohms	Solder Lug	16.4 mm	27 mm	1.063 in	0.646 in	Chassis Mount	5 %	3 Leads	Radial	Slide	5.433 in	140 W
Vishay Dale RSSD20117A6R80KB00	6.8 Ohm	Solder Lug	12.6 mm	22 mm	0.866 in	0.496 in	Chassis Mount	10 %	3 Leads	Radial	Slide	4.606 "	100 W
