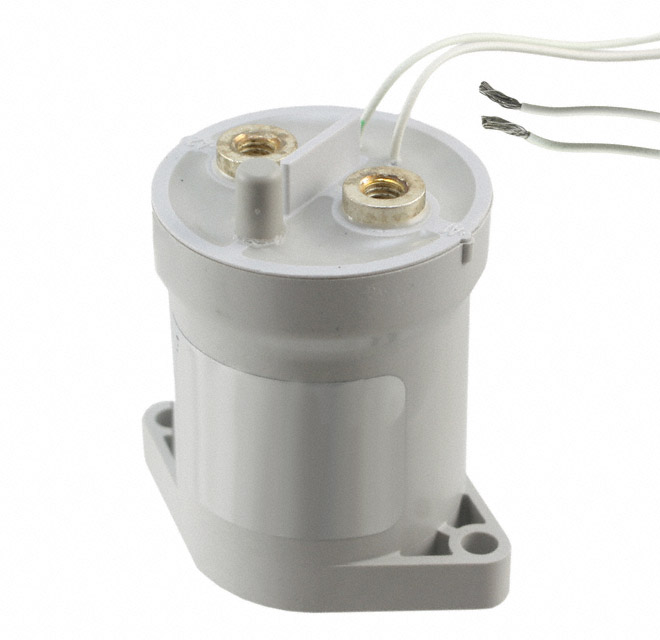

LEV100A6ANG

Active

TE Connectivity Aerospace, Defense and Marine

RELAY CONTACTOR SPST 100A 48V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY CONTACTOR SPST 100A 48V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY CONTACTOR SPST 100A 24V

Part	Contact Form	Coil Power	Switching Voltage	Must Operate Voltage	Must Release Voltage	Contact Rating (Current)	Coil Current	Features	Mounting Type	Coil Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Release Time	Coil Resistance	Contact Material
TE Connectivity Aerospace, Defense and Marine LEV100A5ANG	SPST-NO (DM) (1 Form X)	6 W	900 VDC	16 VDC	2.4 VDC	100 A	250 mA	Sealed - Hermetically	Chassis Mount	24 VDC	Stud	85 °C	-40 °C	25 ms	10 ms
TE Connectivity Aerospace, Defense and Marine LEV100A7ANH	SPST-NO (DM) (1 Form X)	5.8 W	900 VDC			100 A	205.9 mA	Sealed - Hermetically	Chassis Mount	28 VDC	Stud	85 °C	-40 °C	25 ms	10 ms	136 Ohms	Copper
TE Connectivity Aerospace, Defense and Marine LEV100A6ANG	SPST-NO (DM) (1 Form X)	6 W	900 VDC	33 VDC	4.8 VDC	100 A	122 mA	Sealed - Hermetically	Chassis Mount	48 VDC	Stud	85 °C	-40 °C	25 ms	10 ms	392 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY CONTACTOR SPST 100A 48V
