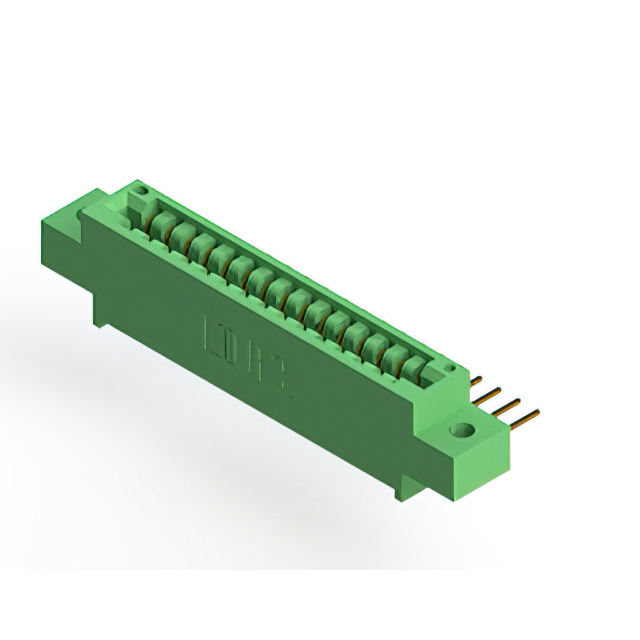

846-015-558-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 15POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-015-558-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 15POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-015-558-602

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Positions/Bay/Row [custom]	15
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

846-015 Series

...

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Gender	Card Type	Read Out	Pitch [x]	Pitch [x]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Number of Rows	Material - Insulation	Termination	Mounting Type	Number of Positions	Flange Feature	Flange Feature
EDAC Inc. 846-015-559-604	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder	Through Hole Right Angle	15
EDAC Inc. 846-015-526-612		Side Mount Opening Unthreaded		Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder	Through Hole	15	3.25 mm	0.128 in
EDAC Inc. 846-015-521-104	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder	Through Hole	15
EDAC Inc. 846-015-559-108		4-40 Flush Mount Threaded Insert Top Opening		Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder	Through Hole Right Angle	15
EDAC Inc. 846-015-558-602				Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder	Through Hole Right Angle	15	3.25 mm	0.128 in
EDAC Inc. 846-015-522-112	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder	Through Hole	15
EDAC Inc. 846-015-500-108		4-40 Flush Mount Threaded Insert Top Opening		Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder Eyelet(s)	Through Hole	15
EDAC Inc. 846-015-541-607		M3 Threaded Insert Top Mount Opening		Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Wire Wrap	Through Hole	15
EDAC Inc. 846-015-526-112	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Solder	Through Hole	15
EDAC Inc. 846-015-541-101				Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	15	Female	Non Specified - Single Edge	Single	0.125 in	3.18 mm	Copper Alloy	10 Áin	0.25 Ám	Green	Cantilever	125 °C	-40 °C	1	1	Diallyl Phthalate (DAP)	Wire Wrap	Through Hole	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 53.16
Newark	Each	1	$ 61.36
		100	$ 47.32
		250	$ 41.32
		500	$ 35.32
		1000	$ 27.00

Description

General part information

846-015 Series

15 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
