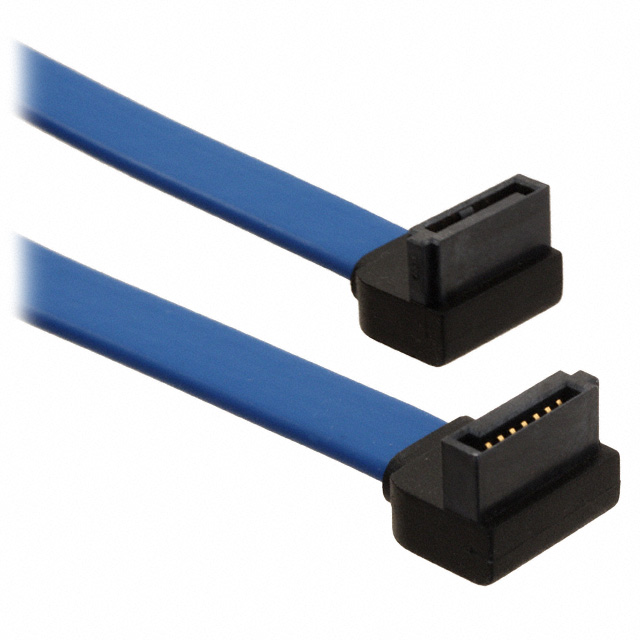

5602-11-0000-000

Obsolete

3M (TC)

CABLE SATA F-F 1M

Search across all available documentation for this part.

Obsolete

3M (TC)

CABLE SATA F-F 1M

Technical Specifications

Parameters and characteristics for this part

Specification	5602-11-0000-000

Cable Connectors	SATA
Cable Type	Flat
Color	Blue
Connector Type	Receptacle, Right Angle to Receptacle, Right Angle
Current - Max/Contact [Max]	1.5 A
Fastening Type	Push-Pull
Gender	Female to Female
Length [x]	1 m
Length [x]	3.28 ft
Number of Positions	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Usage	External

Part	Cable Type	Color	Number of Positions	Shielding	Gender	Cable Connectors	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current - Max/Contact [Max]	Length [x]	Length [x]	Fastening Type
3M (TC) 5602-11-0000-000	Flat	Blue	7	Shielded	Female to Female	SATA	External	-40 °C	80 C	Receptacle Right Angle Right Angle to Receptacle	1.5 A	1 m	3.28 ft	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position SATA Receptacle, Right Angle to Receptacle, Right Angle 3.28' (1.00m) Blue Shielded
