EC21EUGA-MINIPCIE

Active

Quectel

RF TXRX MOD CEL/NAV CARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

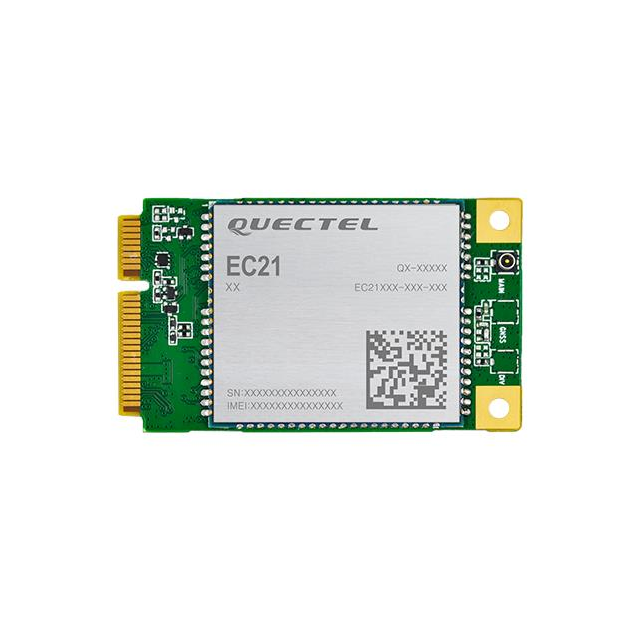

EC21EUGA-MINIPCIE

Active

Quectel

RF TXRX MOD CEL/NAV CARD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 46.47
		10	$ 43.33
		25	$ 43.06

Description

General part information

EC21 Series

Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EC21EUGA-MINIPCIE	EC21 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Current - Receiving	23 mA	22 - 34 mA
Current - Transmitting	23 mA	22 - 34 mA
Data Rate	42 Mbps	10 - 42 Mbps
Mounting Type	Card Edge	Surface Mount, Card Edge
Operating Temperature [Max]	75 ░C	75 - 85 °C
Operating Temperature [Min]	-35 °C	-40 - -35 °C
Package / Case	Module	Module
Power - Output	-	23 - 33 dBm
Protocol	LTE, GNSS, EDGE, GSM, UMTS, WCDMA, GPS, GLONASS, Galileo, Beidou	LTE, GSM, WCDMA, Beidou, 2G, UMTS, 3G, GPRS, GPS, M2M/IoT, HSPA+, EDGE, Galileo, GLONASS, LTE CAT-1, GNSS
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Sensitivity	-	-102 - -101.5 dBm
Serial Interfaces	USB, I2C, PCM, UART	UART, USB, SDIO, ADC, I2C, PCM
Utilized IC / Part	MDM9207-1	MDM9207-1, MDM9307-0
Voltage - Supply [Max]	3.6 V	3.6 - 4.3 V
Voltage - Supply [Min]	3 V	3 - 3.3 V

EC21 Series

RF TXRX MODULE CELL SMD

Part	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Serial Interfaces	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Data Rate	Mounting Type	Current - Receiving	Current - Transmitting	RF Family/Standard	Package / Case	Utilized IC / Part
Quectel EC21AUXGA-128-SGNS	GSM, LTE, WCDMA	85 °C	-40 °C	33 dBm	UART, USB	-102 dBm	4.3 V	3.3 V	Antenna Not Included	10 Mbps	Surface Mount	34 mA	34 mA	Cellular	Module
Quectel EC21AUXGR-128-SGNS	2G, 3G, Beidou, EDGE, Galileo, GLONASS, GPRS, GPS, GSM, HSPA+, LTE CAT-1, M2M/IoT, UMTS, WCDMA	85 °C	-40 °C	23 dBmW	ADC, SDIO, UART, USB	-101.5 dBm	4.3 V	3.3 V		10 Mbps	Surface Mount			Cellular	Module	MDM9207-1
Quectel EC21VFA-512-STD	LTE	80 C	-40 °C	33 dBm	UART, USB	-102 dBm	3.6 V	3 V	Antenna Not Included	10 Mbps	Card Edge	34 mA	34 mA	Cellular	Module	MDM9307-0
Quectel EC21AUFA-MINIPCIE	GSM, LTE, WCDMA	80 C	-40 °C	33 dBm	UART, USB	-102 dBm	3.6 V	3 V	Antenna Not Included	10 Mbps	Card Edge	34 mA	34 mA	Cellular	Module	MDM9207-1
Quectel EC21EUXGA-MINIPCIE	Beidou, EDGE, Galileo, GLONASS, GNSS, GPS, GSM, LTE, UMTS, WCDMA	75 ░C	-35 °C		I2C, PCM, UART, USB		3.6 V	3 V	Antenna Not Included	42 Mbps	Card Edge	22 mA	22 mA	Cellular, Navigation	Module
Quectel EC21KLFA-512-SKT	LTE	80 C	-40 °C	33 dBm	UART, USB	-102 dBm	3.6 V	3 V	Antenna Not Included	10 Mbps	Card Edge	34 mA	34 mA	Cellular	Module	MDM9307-0
Quectel EC21EUGA-MINIPCIE	Beidou, EDGE, Galileo, GLONASS, GNSS, GPS, GSM, LTE, UMTS, WCDMA	75 ░C	-35 °C		I2C, PCM, UART, USB		3.6 V	3 V	Antenna Not Included	42 Mbps	Card Edge	23 mA	23 mA	Cellular, Navigation	Module	MDM9207-1
Quectel EC21AUXGA-MINIPCIE	Beidou, EDGE, Galileo, GLONASS, GNSS, GPS, GSM, LTE, UMTS, WCDMA	75 ░C	-35 °C		I2C, PCM, UART, USB		3.6 V	3 V	Antenna Not Included	42 Mbps	Card Edge	22 mA	22 mA	Cellular, Navigation	Module
Quectel EC21EUGATEA-512-SGNS	GSM, LTE, WCDMA	80 C	-40 °C	33 dBm	UART, USB	-102 dBm	3.6 V	3 V	Antenna Not Included	10 Mbps	Card Edge	34 mA	34 mA	Cellular	Module
Quectel EC21VFATEA-512-STD	LTE	80 C	-40 °C	33 dBm	UART, USB	-102 dBm	3.6 V	3 V	Antenna Not Included	10 Mbps	Card Edge	34 mA	34 mA	Cellular	Module
