RFD-4195-1954

Active

RF Industries

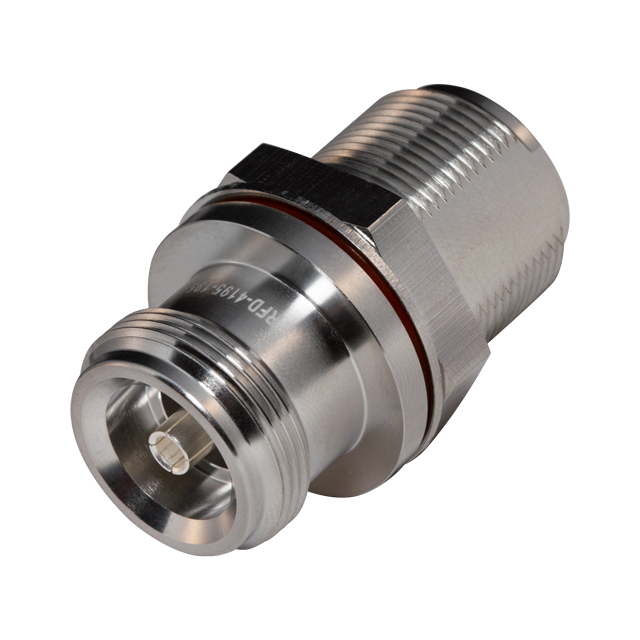

4.1/9.5 FEMALE-4.1/9.5 FEMALE BH

Search across all available documentation for this part.

Active

RF Industries

4.1/9.5 FEMALE-4.1/9.5 FEMALE BH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFD-4195-1954	RFD-4195 Series

Adapter Series	4.1/9.5 to 4.1/9.5	4.1/9.5 to 4.1/9.5
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Silver	Silver
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Female Socket, 4.1/9.5 Jack	Female Socket, 4.1/9.5 Jack, 4.1/9.5 Plug, Male Pin
Convert To (Adapter End)	4.1/9.5 Jack, Female Socket	4.1/9.5 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	3 - 6000 MHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.08 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead	Bulkhead
Mounting Type	-	Free Hanging (In-Line), Right Angle
Operating Temperature	-	155 °C
Operating Temperature	-	-55 °C
Style	Straight	Straight, Right Angle

4.1/9.5 FEMALE-4.1/9.5 FEMALE BH

Part	Center Contact Plating	Body Finish	Convert To (Adapter End)	Mating Cycles	Impedance	Center Gender	Mounting Feature	Adapter Type	Center Contact Material	Adapter Series	Frequency - Max [Max]	Body Material	Style	Dielectric Material	Conversion Type	Convert From (Adapter End)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss
RF Industries RFD-4195-1954	Silver	White Bronze	4.1/9.5 Jack, Female Socket	500	50 Ohms	Female to Female	Bulkhead	Jack to Jack	Beryllium Copper	4.1/9.5 to 4.1/9.5	6000 MHz	Brass	Straight	Polytetrafluoroethylene (PTFE)	Same Series	4.1/9.5 Jack, Female Socket
RF Industries RFD-4195-1952	Silver	White Bronze	4.1/9.5 Jack, Female Socket	500	50 Ohms			Plug to Jack	Brass	4.1/9.5 to 4.1/9.5	3 GHz	Brass	Right Angle	Polytetrafluoroethylene (PTFE)	Same Series	4.1/9.5 Plug, Male Pin	Free Hanging (In-Line), Right Angle	155 °C	-55 °C	0.08 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.1/9.5 Jack, Female Socket To 4.1/9.5 Jack, Female Socket 50 Ohms
