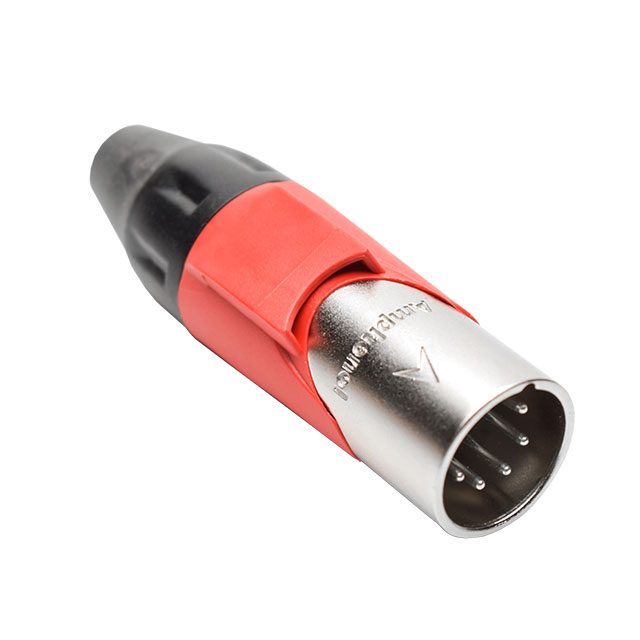

AX5M2M

Active

AMPHENOL AUDIO

CONN RCPT MALE XLR 5P SOLDER CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN RCPT MALE XLR 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Shell Finish	Ingress Protection	Features	Fastening Type	Contact Finish - Mating	Orientation	Shell Material	Current Rating (Amps)	Connector Type	Shell Size - Insert	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Color
AMPHENOL AUDIO AX5M6M	Nickel	IP40	Backshell Cable Clamp	Latch Holder	Silver	Keyed	Zinc Die Cast	7.5 A	Male Pins Receptacle	XLR	Free Hanging (In-Line)	-25 °C	75 ░C	Metal	Silver
AMPHENOL AUDIO AX5M8M	Nickel	IP40	Backshell Cable Clamp	Latch Holder	Silver	Keyed	Zinc Die Cast	7.5 A	Male Pins Receptacle	XLR	Free Hanging (In-Line)	-25 °C	75 ░C	Metal	Silver
AMPHENOL AUDIO AX5M1M	Nickel	IP40	Backshell Cable Clamp	Latch Holder	Silver	Keyed	Zinc Die Cast	7.5 A	Male Pins Receptacle	XLR	Free Hanging (In-Line)	-25 °C	75 ░C	Metal	Silver
AMPHENOL AUDIO AX5M5M	Nickel	IP40	Backshell Cable Clamp	Latch Holder	Silver	Keyed	Zinc Die Cast	7.5 A	Male Pins Receptacle	XLR	Free Hanging (In-Line)	-25 °C	75 ░C	Metal	Silver
AMPHENOL AUDIO AX5M2M	Nickel	IP40	Backshell Cable Clamp	Latch Holder	Silver	Keyed	Zinc Die Cast	7.5 A	Male Pins Receptacle	XLR	Free Hanging (In-Line)	-25 °C	75 ░C	Metal	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
