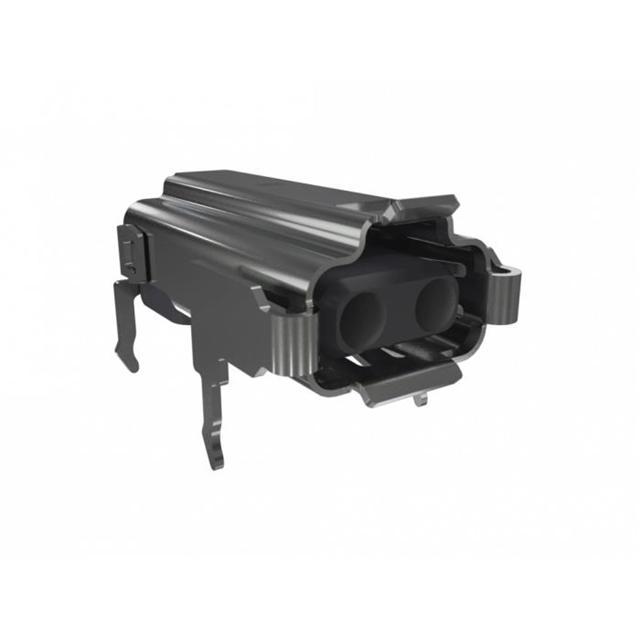

Specification	MSPE-J2L0-B00

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
Ingress Protection	IP20
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Through Hole
Number of Ports	1
Number of Positions/Contacts	Single Pair Ethernet (SPE), 2P2C
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	90 °
Orientation Direction	Right
Shielding	Unshielded
Termination	Solder

MSPE-J Series

Part	Number of Ports	Contact Material	Termination	Number of Positions/Contacts	Housing Material	Contact Finish Thickness	Connector Type	LED Color	Number of Rows	Ingress Protection	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Orientation Angle	Orientation Direction	Shielding	Contact Finish	Orientation
Amphenol ICC (Commercial Products) MSPE-J2L0-B00	1	Copper Alloy	Solder	2P2C Single Pair Ethernet (SPE)	Thermoplastic	30 µin	Jack	Does Not Contain LED	1	IP20	Panel Mount Through Hole	-40 °C	85 °C	90 °	Right	Unshielded	Gold
Amphenol ICC (Commercial Products) MSPE-J2L0-E00	1	Copper Alloy	Solder	2P2C Single Pair Ethernet (SPE)	Thermoplastic	30 µin	Jack	Does Not Contain LED	1	IP20	Panel Mount Through Hole	-40 °C	85 °C			Unshielded	Gold	Vertical
Amphenol ICC (Commercial Products) MSPE-J2L0-B01	1	Copper Alloy	Solder	2P2C Single Pair Ethernet (SPE)	Thermoplastic	30 µin	Jack	Does Not Contain LED	1	IP20	Panel Mount Through Hole	-40 °C	85 °C	90 °	Right	Unshielded	Gold
