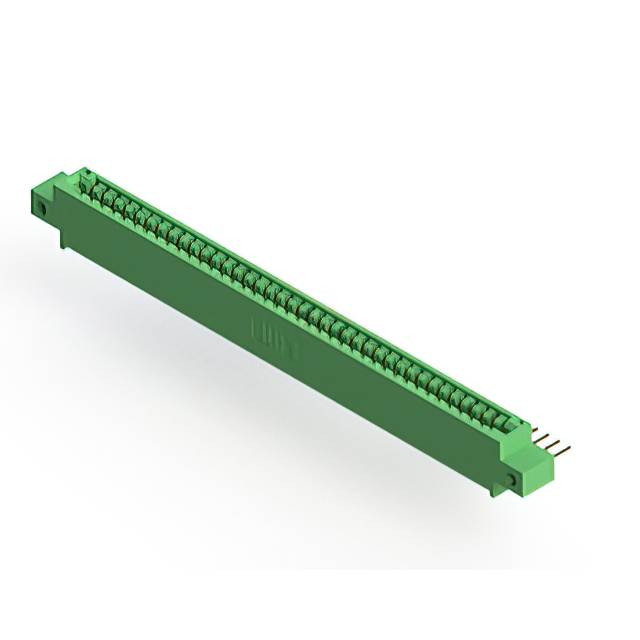

346-039-558-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-039-558-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-039-558-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 39 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
346-039 Series
...
| Part | Card Type | Pitch [x] | Pitch [x] | Number of Positions | Contact Material | Termination Rows | Termination | Mounting Type | Contact Type | Read Out | Material - Insulation | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Gender | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Wire Wrap | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Wire Wrap | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Wire Wrap | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | ||||||
EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.63 | |
Description
General part information
346-039 Series
39 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
