R125072000W

Active

Radiall USA, Inc.

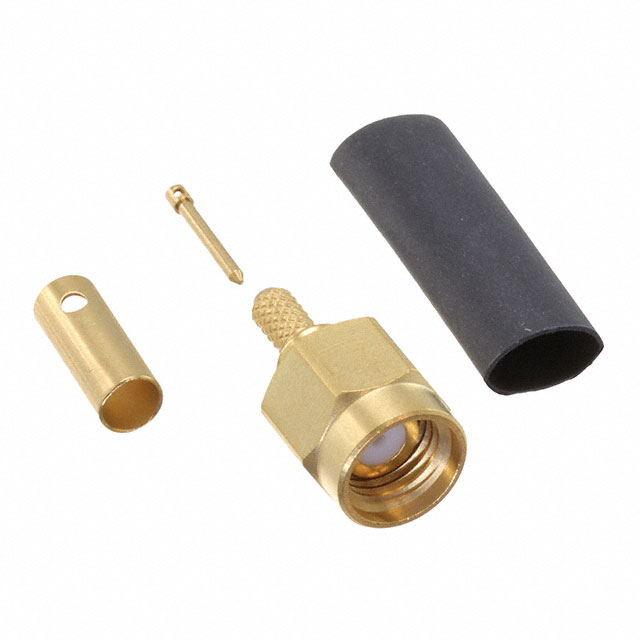

SMA M STR CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA M STR CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	R125072000W

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Center Contact Plating	Connector Style	Contact Termination	Voltage Rating	Number of Ports	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Shield Termination	Impedance	Housing Color	Mating Cycles	Frequency - Max [Max]	Cable Group	Mounting Type	Dielectric Material	Connector Type	Body Material
Radiall USA, Inc. R125072000W	Gold	SMA	Crimp	250 VDC	1	Gold	-65 ░C	165 °C	Brass	Crimp	50 Ohms	Gold	500	12.4 GHz	316 RG-174	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
