530-26-10-WH-0100F
ActiveCnC Tech, LLC

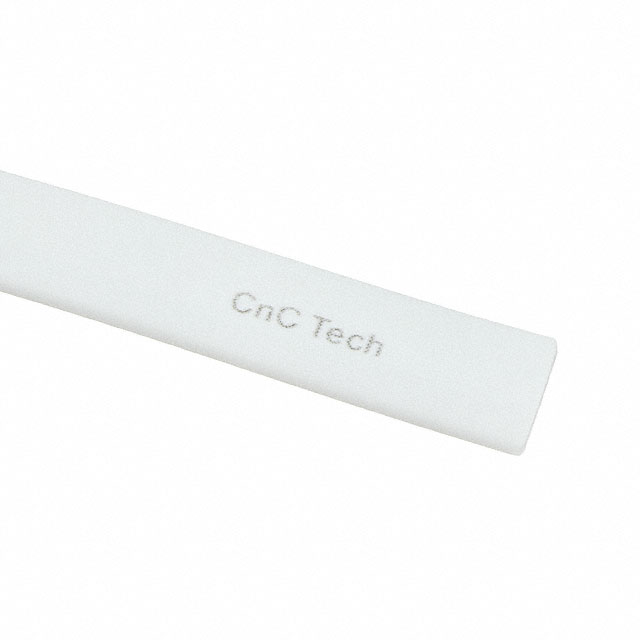

CABLE MOD FLAT 10COND REEL 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
530-26-10-WH-0100F
ActiveCnC Tech, LLC
CABLE MOD FLAT 10COND REEL 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 530-26-10-WH-0100F |
|---|---|
| Cable Height | 0.097 in |
| Cable Height | 2.46 mm |
| Cable Type | Straight |
| Cable Width | 10.8 mm |
| Cable Width | 0.425 in |
| Conductor Material | Copper, Bare |
| Conductor Strand [x] | 7 |
| Conductor Strand [y] | 0.0063 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 10 |
| Shielding | Unshielded |
| Wire Gauge | 26 AWG |
530-26 Series
| Part | Conductor Strand [x] | Conductor Strand [y] | Cable Type | Number of Conductors | Cable Width | Cable Width | Conductor Material | Length [x] | Length [x] | Cable Height | Cable Height | Jacket Color | Shielding | Wire Gauge | Jacket (Insulation) Material | Length | Cable Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | 7 | 0.0063 in | Straight | 4 | 0.189 in | 4.8 mm | Copper Bare | 76.2 m | 250 ft | 0.097 in | 2.46 mm | Black | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | ||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 10 | 0.425 in | 10.8 mm | Copper Bare | 100 ft | 0.097 in | 2.46 mm | Black | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | 30.5 m | ||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 8 | 0.346 in | 8.8 mm | Copper Bare | 152.4 m | 500 ' | 0.097 in | 2.46 mm | Silver | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | ||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 6 | 0.267 in | Copper Bare | 76.2 m | 250 ft | 0.097 in | 2.46 mm | Black | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | 6.8 mm | ||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 10 | 0.425 in | 10.8 mm | Copper Bare | 76.2 m | 250 ft | 0.097 in | 2.46 mm | Silver | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | ||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 10 | 0.425 in | 10.8 mm | Copper Bare | 100 ft | 0.097 in | 2.46 mm | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | 30.5 m | |||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 8 | 0.346 in | 8.8 mm | Copper Bare | 100 ft | 0.097 in | 2.46 mm | Silver | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | 30.5 m | ||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 6 | 0.267 in | Copper Bare | 76.2 m | 250 ft | 0.097 in | 2.46 mm | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | 6.8 mm | |||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 4 | 0.189 in | 4.8 mm | Copper Bare | 152.4 m | 500 ' | 0.097 in | 2.46 mm | Black | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) | ||
CnC Tech, LLC | 7 | 0.0063 in | Straight | 4 | 0.189 in | 4.8 mm | Copper Bare | 152.4 m | 500 ' | 0.097 in | 2.46 mm | Silver | Unshielded | 26 AWG | Poly-Vinyl Chloride (PVC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 53.32 | |
| 3 | $ 49.33 | |||
| 5 | $ 47.62 | |||
| 7 | $ 46.48 | |||
| 10 | $ 45.34 | |||
| 25 | $ 42.48 | |||
| 50 | $ 40.20 | |||
| 100 | $ 38.49 | |||
Description
General part information
530-26 Series
10 Conductor Modular Straight Cable White 100' (30.5m)
Documents
Technical documentation and resources
