Y100AB2C203NQ

Active

LITTELFUSE

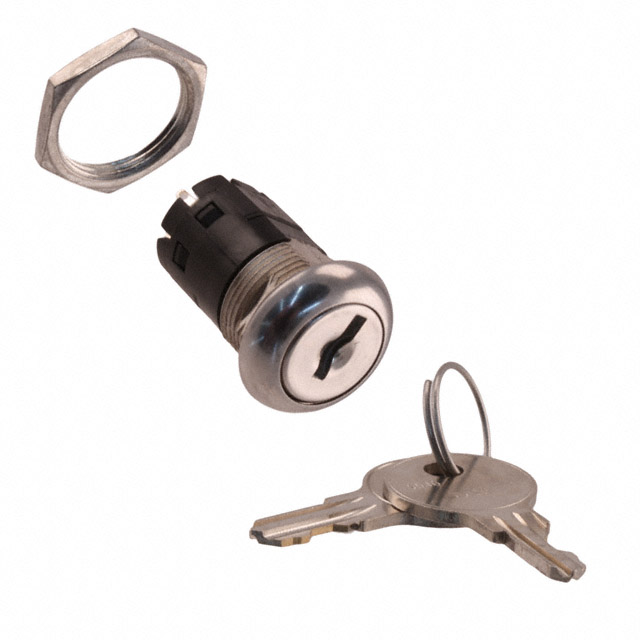

SWITCH KEYLOCK 4POS SP4T 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet switchlock +1

Y100AB2C203NQ

Active

LITTELFUSE

SWITCH KEYLOCK 4POS SP4T 4A 125V

Deep-Dive with AI

DocumentsDatasheet switchlock +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Y100AB2C203NQ

Actuator Type	Flat Key
Angle of Throw	45 °
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange	28.83 mm
Electrical Life	10000 Cycles
Key Removable Positions	All
Number of Positions	4
Panel Cutout Dimensions [diameter]	19.3 mm
Switch Function	On-On-On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Y100AB2C Series

4, 5 & 6 Tumbler Switchlock

Part	Switch Function	Contact Material	Voltage Rating - DC	Contact Timing	Current Rating (Amps)	Termination Style	Electrical Life	Angle of Throw	Actuator Type	Panel Cutout Dimensions [diameter]	Depth Behind Flange	Key Removable Positions	Voltage Rating - AC	Contact Finish	Number of Positions
LITTELFUSE Y100AB2C203NQ	On-On-On-On	Copper	28 V	Not Specified	4 A	Solder Lug	10000 Cycles	45 °	Flat Key	19.3 mm	28.83 mm	All	125 V	Silver	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.74
		10	$ 13.38
		36	$ 13.24

Description

General part information

Y100AB2C Series

The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.
