Specification	GC1001-E

Color	Light Gray
Includes	Locknut, O-Ring, Seal
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material	Nylon, Polyamide (PA)
Outside Cable Diameter (Max)	0.709 in
Outside Cable Diameter (Min)	0.551 in
Panel Hole Size	1.299 in
Thread Diameter	32 mm
Thread Length	0.394 in
Thread Pitch	1.5 mm
Type	Cable Gland

GC1001 Series

Part	Thread Diameter	Thread Pitch	Material	Panel Hole Size	Type	Includes	Color	Outside Cable Diameter (Max)	Ingress Protection Description	Ingress Protection IP Rating	Outside Cable Diameter (Min)	Thread Length

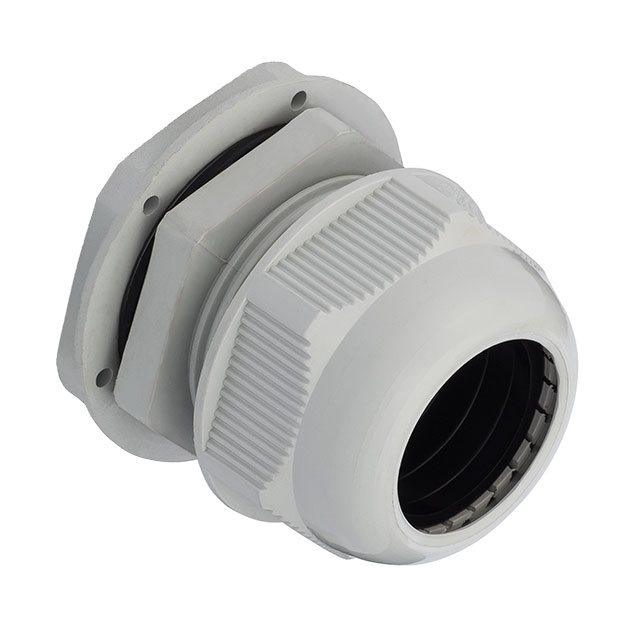

Davies Molding, LLC GC1001-G	50 mm	1.5 mm	Nylon Polyamide (PA)	2.008 in	Cable Gland	Locknut O-Ring Seal	Light Gray	1.26 in	Dust Tight Waterproof	IP67	0.984 in	0.492 in
Davies Molding, LLC GC1001-B	16 mm	1.5 mm	Nylon Polyamide (PA)	0.65 in	Cable Gland	Locknut O-Ring Seal	Light Gray	0.315 in	Dust Tight Waterproof	IP67	0.217 in	0.335 in
Davies Molding, LLC GC1001-E	32 mm	1.5 mm	Nylon Polyamide (PA)	1.299 in	Cable Gland	Locknut O-Ring Seal	Light Gray	0.709 in	Dust Tight Waterproof	IP67	0.551 in	0.394 in
