Specification	6450150-5

Color	Black
Connector Style	Multi-Beam
Connector Type	Receptacle, Blade Sockets, Female Sockets
Features	Guide Pin, Board Lock
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	4
Pitch	0.1 in
Power Contacts (Typical)	6
Signal Contacts (Typical)	24
Termination	Solder

XL Series

Piezo Buzzers & Audio Indicators 2500Hz 110dBA 12Vdc

Part	Connector Style	Number of Rows	Pitch	Number of Positions	Power Contacts (Typical)	Signal Contacts (Typical)	Termination	Features	Color	Mounting Type	Connector Type	Number of Positions Loaded	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Finish Thickness	Contact Finish
TE Connectivity AMP Connectors 6450810-1	Multi-Beam	4	0.1 in	64	16	48	Solder	Board Lock Mating Guide	Black	Through Hole	Blades Header Male Pins	All
TE Connectivity AMP Connectors 6450150-5	Multi-Beam	4	0.1 in	30	6	24	Solder	Board Lock Guide Pin	Black	Through Hole	Blade Sockets Female Sockets Receptacle	All
TE Connectivity AMP Connectors 1-6450230-1	Multi-Beam	4	0.1 in	35	11	24	Solder	Mating Guide		Right Angle Through Hole	Blades Header Male Pins	All	-20 °C	105 °C	UL94 V-0	30 µin	Gold

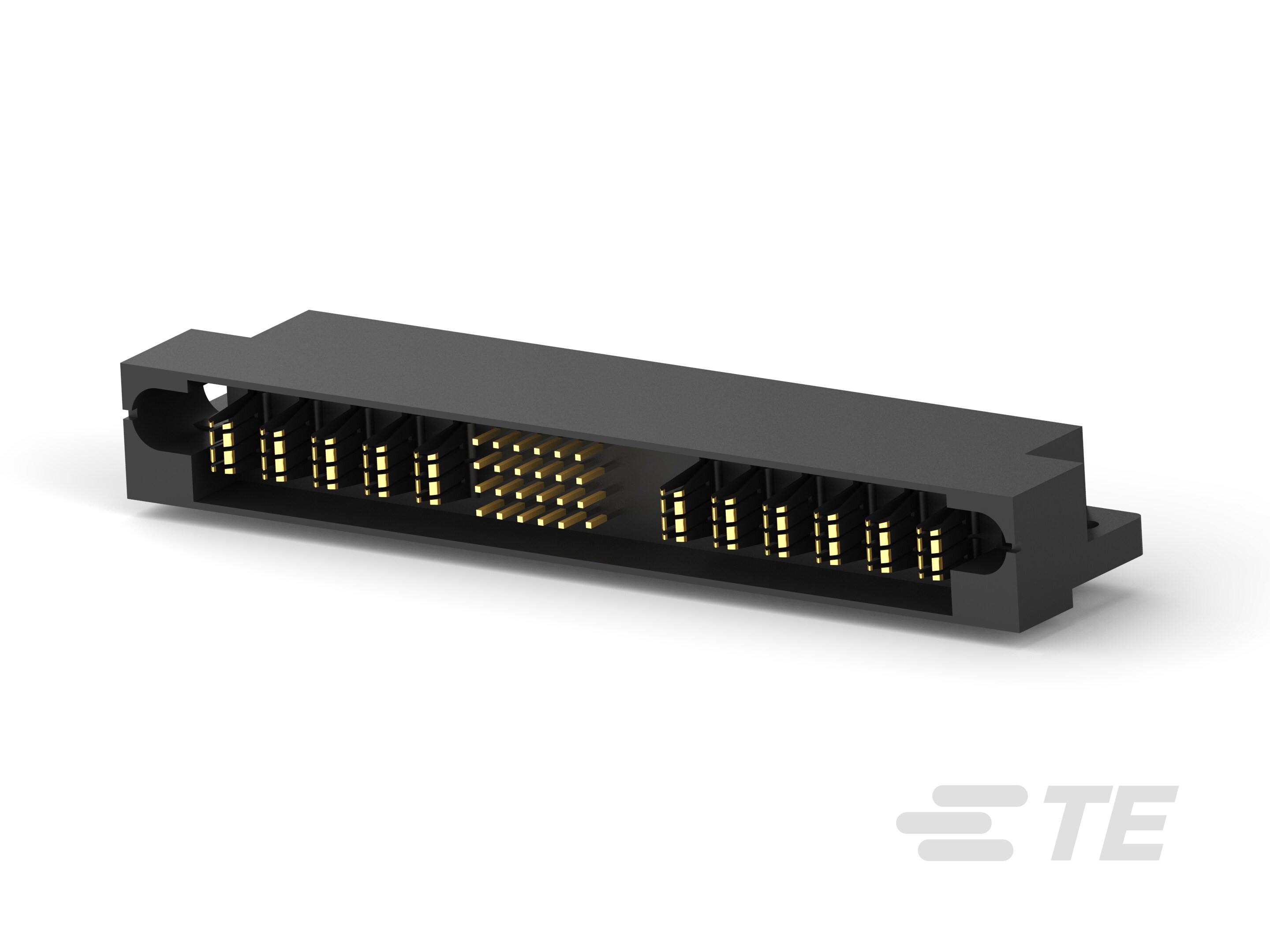

TE Connectivity AMP Connectors 6450230-1	Multi-Beam	4	0.1 in	35	11	24	Solder	Mating Guide		Right Angle Through Hole	Blades Header Male Pins	All	-20 °C	105 °C	UL94 V-0	30 µin	Gold
