MZ0912B100Y,114

Obsolete

Ampleon USA Inc.

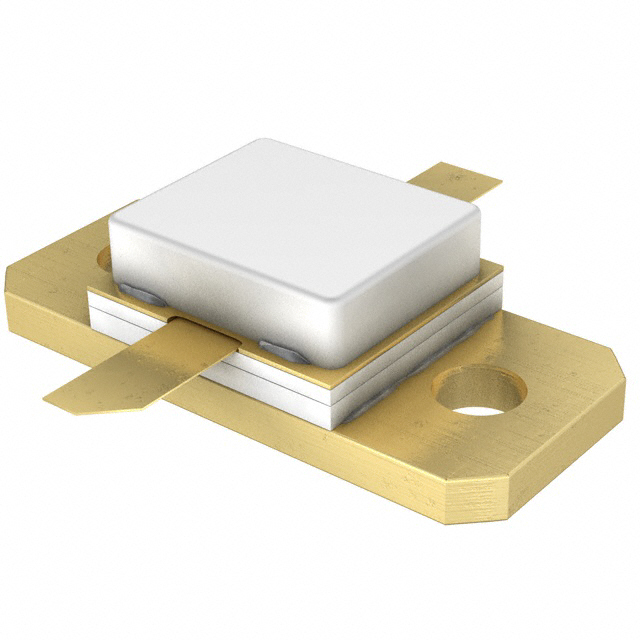

RF TRANS NPN 20V 1.215GHZ CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF TRANS NPN 20V 1.215GHZ CDFM2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MZ0912B100Y,114	MZ0912 Series

Current - Collector (Ic) (Max) [Max]	6 A	3 - 6 A
Frequency - Transition	1.215 GHz	1.215 GHz
Gain	7.6 dBi	7.6 - 8 dBi
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature	200 °C	200 °C
Package / Case	SOT-443A	SOT-443A
Power - Max [Max]	290 W	150 - 290 W
Supplier Device Package	CDFM2	CDFM2
Transistor Type	NPN	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	20 V	20 V

RF TRANS NPN 20V 1.215GHZ CDFM2

Part	Package / Case	Frequency - Transition	Supplier Device Package	Gain	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Power - Max [Max]	Transistor Type	Current - Collector (Ic) (Max) [Max]	Operating Temperature
Ampleon USA Inc. MZ0912B50Y,114	SOT-443A	1.215 GHz	CDFM2	8 dBi	20 V	Chassis Mount	150 W	NPN	3 A
Ampleon USA Inc. MZ0912B100Y,114	SOT-443A	1.215 GHz	CDFM2	7.6 dBi	20 V	Chassis Mount	290 W	NPN	6 A	200 °C
