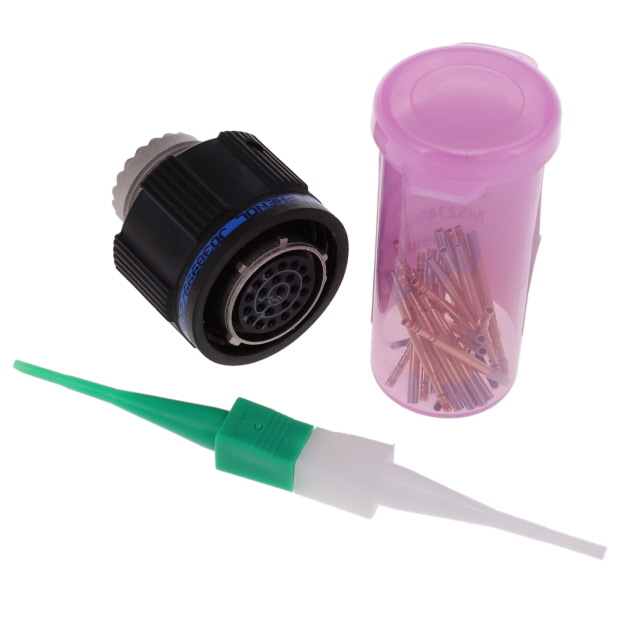

D38999/26MC35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26MC35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26MC35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/26MC Series

Part	Connector Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Ingress Protection	Contact Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Primary Material	Grade	Contact Finish - Mating	Number of Positions	Features	Termination	Shell Finish	Qualification	Shell Material	Orientation	Shell Size, MIL	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert	Housing Color	Note	Contact Type	Type	Contact Shape	Contact Size
Amphenol Aerospace Operations D38999/26MC98JA	Female Sockets Plug	Shielded	-65 ░C	200 °C	Aerospace Aviation Military	Environment Resistant	Copper Alloy	Free Hanging (In-Line)	2.54 çm	100 çin	Silver	Composite	Military	Gold	10	Coupling Nut	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	Composite	A	C
Amphenol Aerospace Operations D38999/26MC35SN	Female Sockets Plug	Shielded	-65 ░C	200 °C	Aerospace Aviation Marine Military	Environment Resistant	Copper Alloy	Free Hanging (In-Line)	1.27 µm	50 µin	Silver	Composite	Military	Gold	22 positions	Coupling Nut	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	Composite	N	C	35	13
Amphenol Aerospace Operations D38999/26MC4PN	Male Pins Plug	Shielded	-65 ░C	200 °C	Aerospace Aviation Marine Military	Environment Resistant	Copper Alloy	Free Hanging (In-Line)	1.27 µm	50 µin	Silver	Composite	Military	Gold	4	Coupling Nut	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	Composite	N	C			13-4
Amphenol Aerospace Operations D38999/26MC35JA	Female Sockets Plug	Shielded	-65 ░C	200 °C	Aerospace Aviation Military	Environment Resistant	Copper Alloy	Free Hanging (In-Line)	2.54 çm	100 çin	Silver	Composite	Military	Gold	22 positions	Coupling Nut	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	Composite	A	C	35	13
Amphenol Aerospace Operations D38999/26MC35BN	Plug Housing	Shielded	-65 ░C	200 °C		Environment Resistant		Free Hanging (In-Line)					Military		22 positions	Coupling Nut Self Locking		Electroless Nickel	MIL-DTL-38999 Series III	Composite	N	C	35	13		Silver	Contacts Not Included	Crimp	For Female Sockets	Circular	22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 77.94
		1	$ 134.34
		10	$ 104.77
		10	$ 67.55
		25	$ 95.42
		25	$ 59.60
		50	$ 89.12
		50	$ 53.33
		100	$ 46.76
		100	$ 83.43

Description

General part information

D38999/26MC Series

22 Position Circular Connector Plug, Female Sockets Crimp
