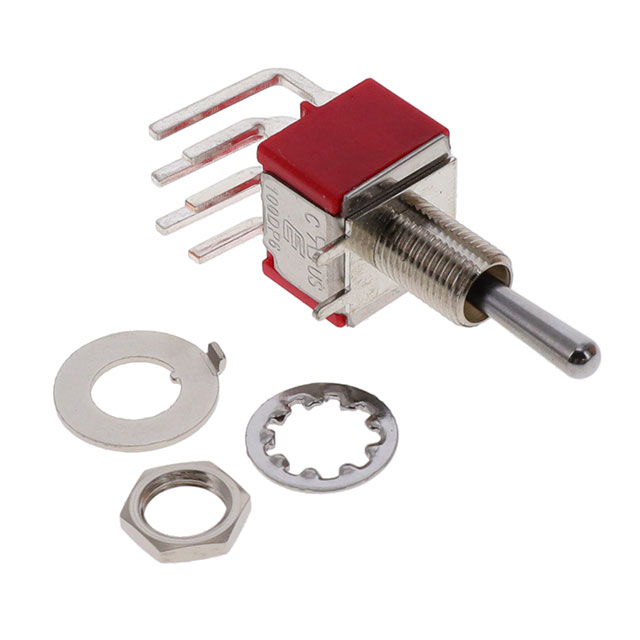

100DP6T1B1M6QEH

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP6T1B1M6QEH

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.36
		10	$ 3.93
		25	$ 3.74
		66	$ 3.58
		132	$ 3.46

Description

General part information

100DP6 Series

Toggle Switch SP3T Panel Mount, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP6T1B1M6QEH	100DP6 Series

Actuator Length [x]	10.41 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Flat Anti-Rotation, Standard Round, Locking Lever
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32
Circuit	SP3T	SP3T
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Jumper needed to achieve triple throw	Jumper needed to achieve triple throw
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Right Angle, Panel Mount	Through Hole, Through Hole, Right Angle, Right Angle, Panel Mount, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	On-On-On	On-On-On
Termination Style	PC Pin	Solder Lug, PC Pin, Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100DP6 Series

SWITCH TOGGLE SP3T 0.4VA 20V

Part	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Illumination	Electrical Life	Features	Circuit	Actuator Length [x]	Termination Style	Bushing Thread	Mounting Type
E-Switch 100DP6T6B11M1REH	On-On-On	20 V	-30 ░C	85 °C	Brass, Chrome Plated	Flat Anti-Rotation	0.4 VA	0.25 in	20 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	12.3 mm	Solder Lug	1/4-40
E-Switch 100DP6T3B4VS2QE	On-On-On	120 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	5 A		28 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	13.97 mm	PC Pin	Unthreaded	Through Hole
E-Switch 100DP6T6B15M3QEH	On-On-On	120 V	-30 ░C	85 °C	Brass, Chrome Plated	Flat Anti-Rotation	5 A	0.25 in	28 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	12.29 mm	Quick Connect - 0.062" (1.5mm)	1/4-40
E-Switch 100DP6T3B2VS3QE	On-On-On	120 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	5 A		28 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	13.97 mm	PC Pin	Unthreaded	Through Hole
E-Switch 100DP6T2B4M6RE	On-On-On	20 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	0.4 VA		20 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	5.08 mm	PC Pin	Unthreaded	Through Hole, Right Angle
E-Switch 100DP6T7B13M3REH	On-On-On	20 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	0.4 VA	11.91 mm	20 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	13 mm	Quick Connect - 0.062" (1.5mm)	15/32-32
E-Switch 100DP6T1B1M6QEH	On-On-On	120 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	5 A	0.25 in	28 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	10.41 mm	PC Pin	1/4-40	Panel Mount, Right Angle
E-Switch 100DP6T1B1M1QEH	On-On-On	120 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	5 A	0.25 in	28 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	10.41 mm	Solder Lug	1/4-40
E-Switch 100DP6T5B3M3QEH	On-On-On	120 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	5 A	0.25 in	28 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	21.34 mm	Quick Connect - 0.062" (1.5mm)	1/4-40
E-Switch 100DP6T1B4M2QE	On-On-On	120 V	-30 ░C	85 °C	Brass, Chrome Plated	Standard Round	5 A		28 V	Non-Illuminated	40000 Cycles	Jumper needed to achieve triple throw	SP3T	10.41 mm	PC Pin	Unthreaded	Through Hole
