Q-2I04E0005003i

Active

Amphenol Custom Cable

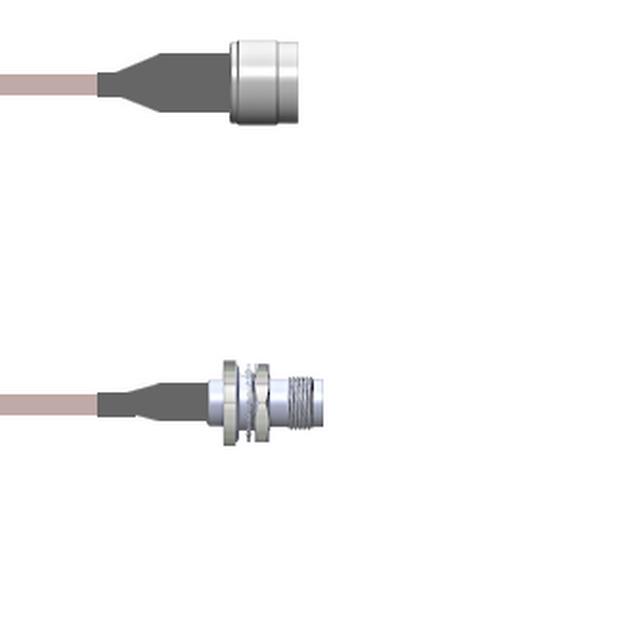

CBL ASSY NTYPE-TNC PLUG-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I04E0005003i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I04E0005003i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms

Q-2I04E0 Series

Part	Overall Impedance	Features	1st Connector Mounting Type	Length	Length	2nd Connector	Frequency - Max [Max]	Cable Type	Color	2nd Contact Gender	2nd Connector Mounting Type	2nd Connector Mounting Feature	1st Contact Gender	Length
Amphenol Custom Cable Q-2I04E0003003i	50 Ohms	Shielded	Free Hanging (In-Line)	3 in	76.2 mm	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male
Amphenol Custom Cable Q-2I04E0003060i	50 Ohms	Shielded	Free Hanging (In-Line)	5 '	1.5 m	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male	5 ft
Amphenol Custom Cable Q-2I04E00032.5M	50 Ohms	Shielded	Free Hanging (In-Line)	98.4 in	2.5 m	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male	8.2 '
Amphenol Custom Cable Q-2I04E0003003M	50 Ohms	Shielded	Free Hanging (In-Line)	118.1 in	3 m	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male	9.8 '
Amphenol Custom Cable Q-2I04E0003048i	50 Ohms	Shielded	Free Hanging (In-Line)	48 in	1200 mm	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male	4 ft
Amphenol Custom Cable Q-2I04E0005003i	50 Ohms	Shielded	Free Hanging (In-Line)	3 in	76.2 mm	TNC Jack	11 GHz	RG-316	Copper	Female	Panel Mount	Bulkhead - Front Side Nut	Male
Amphenol Custom Cable Q-2I04E0005024i	50 Ohms	Shielded	Free Hanging (In-Line)	24 "	609.6 mm	TNC Jack	11 GHz	RG-316	Copper	Female	Panel Mount	Bulkhead - Front Side Nut	Male
Amphenol Custom Cable Q-2I04E0003024i	50 Ohms	Shielded	Free Hanging (In-Line)	24 "	609.6 mm	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male
Amphenol Custom Cable Q-2I04E00030.5M	50 Ohms	Shielded	Free Hanging (In-Line)	19.69 "	50 cm	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male
Amphenol Custom Cable Q-2I04E0003001M	50 Ohms	Shielded	Free Hanging (In-Line)	39.4 in	1 m	TNC Jack	11 GHz	RG-174	Black	Female	Panel Mount	Bulkhead - Front Side Nut	Male	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 91.83
		25	$ 90.05
		50	$ 88.28
		100	$ 86.51
		250	$ 84.73

Description

General part information

Q-2I04E0 Series

Cable Assembly Coaxial N-Type to TNC RG-316 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
