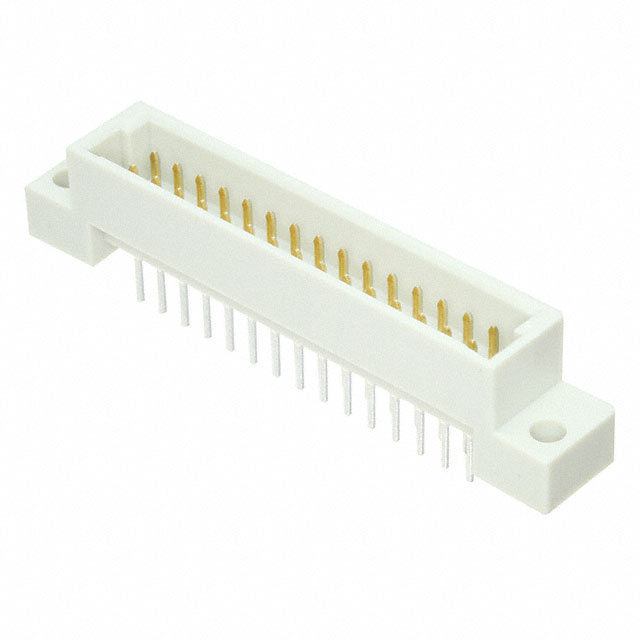

Specification	XC5E-3281-2A

Connector Type	Male Pins, Plug
Current Rating	2 A
Material - Insulation	Glass Filled, PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Number of Positions	32
Number of Positions Loaded	32
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	Q

XC5E Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Material - Insulation	Material Flammability Rating	Number of Positions	Connector Type	Number of Rows	Style	Pitch	Number of Positions Loaded	Termination	Mounting Type	Contact Finish	Contact Finish Thickness	Number of Positions Loaded
Omron Electronics Inc-EMC Div XC5E-4481-2A	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	44	Male Pins Plug	2	Q	0.1 in	44
Omron Electronics Inc-EMC Div XC5E-3281-2A	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	32	Male Pins Plug	2	Q	0.1 in	32
Omron Electronics Inc-EMC Div XC5E-3241	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	32	Male Pins Plug	2	Q	0.1 in	32
Omron Electronics Inc-EMC Div XC5E4421ABYOMR	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	44	Male Pins Plug	2	Q	0.1 in	44	Solder	Through Hole
Omron Electronics Inc-EMC Div XC5E-2081-2A	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	20	Male Pins Plug	2	Q	0.1 in	20
Omron Electronics Inc-EMC Div XC5E-2081-2	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	20	Male Pins Plug	2	Q	0.1 in	20	Solder	Through Hole	Gold	16 µin
Omron Electronics Inc-EMC Div XC5E-3081-2	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	30	Male Pins Plug	2	Q	0.1 in	30	Solder	Through Hole	Gold	16 µin
Omron Electronics Inc-EMC Div XC5E-4481-2	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	44	Male Pins Plug	2	Q	0.1 in	44
Omron Electronics Inc-EMC Div XC5E-3223	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	32	Male Pins Plug	2	Q	0.1 in		Wire Wrap	Through Hole	Gold	16 µin	All
Omron Electronics Inc-EMC Div XC5E-4423	125 °C	-55 °C	2 A	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	44	Male Pins Plug	2	Q	0.1 in		Wire Wrap	Through Hole	Gold	16 µin	All
