D38999/20WH55SN

Active

Amphenol Aerospace Operations

8D 55C 55#20 SKT RECP

D38999/20WH55SN

Active

Amphenol Aerospace Operations

8D 55C 55#20 SKT RECP

Description Series Pricing CAD Documents

Description

General part information

D38999/20WH Series

55 Position Circular Connector Receptacle, Female Sockets Crimp

D38999/20WH Series

...

Part	Orientation	Mounting Type	Insert Material	Shell Finish	Connector Type	Qualification	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Size (MIL)	Applications	Contact Material	Contact Finish - Mating	Fastening Type	Current Rating	Shell Material	Primary Material	Grade	Mounting Feature	Contact Finish Thickness - Mating	Ingress Protection Description	Ingress Protection IP Rating	Color	Termination	Housing Color	Ingress Protection	Type	Note	Contact Type	Contact Size Options	Contact Shape	Contact Size
Amphenol Aerospace Operations D38999/20WH55SEL
Amphenol Aerospace Operations D38999/20WH32SN	N (Normal)	Panel Mount	Thermoplastic	Olive Drab Cadmium	Female Sockets Receptacle	MIL-DTL-38999 Series III	32	-65 °C	175 °C	Shielded	23	32	H	Aviation Marine Military	Copper Alloy	Gold	Threaded	7.5 A	Aluminum	Metal	Military	Flange	50 µin	Dust Tight Waterproof	IP67	Olive Drab	Crimp

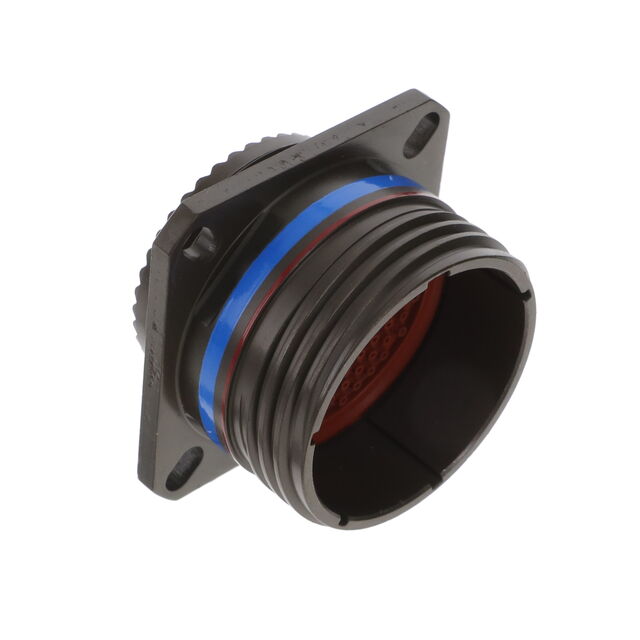

Amphenol Aerospace Operations D38999/20WH35AN	N (Normal)	Panel Mount	Thermoplastic	Cadmium	Receptacle Housing	MIL-DTL-38999 Series III	100	-65 °C	175 °C	Shielded	23	35	H				Threaded		Aluminum	Metal	Military	Flange						Olive Drab	Environment Resistant	For Male Pins	Contacts Not Included	Crimp	22D	Circular
Amphenol Aerospace Operations D38999/20WH32BEL
Amphenol Aerospace Operations D38999/20WH53BE	E	Panel Mount	Plastic	Cadmium Chromate	Receptacle Housing	MIL-DTL-38999 Series III	53	-65 °C	175 °C	Shielded	23	53	H				Threaded		Aluminum Alloy		Military	Flange						Olive Drab	Environment Resistant	For Female Sockets	Contacts Not Included	Crimp		Circular	20
Amphenol Aerospace Operations D38999/20WH55AAL	A	Panel Mount		Cadmium	Plug Housing	MIL-DTL-38999 Series III	55			Shielded			H				Threaded		Aluminum	Metal	Military	Flange								For Male Pins		Crimp			20
Amphenol Aerospace Operations D38999/20WH55SN	N (Normal)	Panel Mount	Thermoplastic	Olive Drab Cadmium	Female Sockets Receptacle	MIL-DTL-38999 Series III	55	-65 °C	175 °C	Shielded	23	55	H	Aviation Marine Military	Copper Alloy	Gold	Threaded	7.5 A	Aluminum	Metal	Military	Flange	50 µin	Dust Tight Waterproof	IP67	Olive Drab	Crimp
Amphenol Aerospace Operations D38999/20WH35AN	N (Normal)	Panel Mount	Thermoplastic	Cadmium	Plug Housing Receptacle Housing	MIL-DTL-38999 Series III	100	-65 °C	175 °C	Shielded Unshielded	23	35	H				Threaded		Aluminum	Metal	Military	Flange						Olive Drab	Environment Resistant	For Male Pins	Contacts Not Included	Crimp	22D	Circular
Amphenol Aerospace Operations D38999/20WH35PN-LC	N (Normal)	Panel Mount	Thermoplastic	Cadmium	Plug Housing Receptacle Housing	MIL-DTL-38999 Series III	100	-65 °C	175 °C	Shielded Unshielded	23	35	H				Threaded		Aluminum	Metal	Military	Flange		Dust Tight Waterproof	IP67			Olive Drab		For Male Pins	Contacts Not Included	Crimp	22D	Circular
Amphenol Aerospace Operations D38999/20WH55PNL	N (Normal)	Panel Mount		Cadmium	Plug Housing	MIL-DTL-38999 Series III	55			Shielded			H				Threaded		Aluminum	Metal	Military	Flange								For Male Pins		Crimp			20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D38999/20WH55SN | Datasheet
