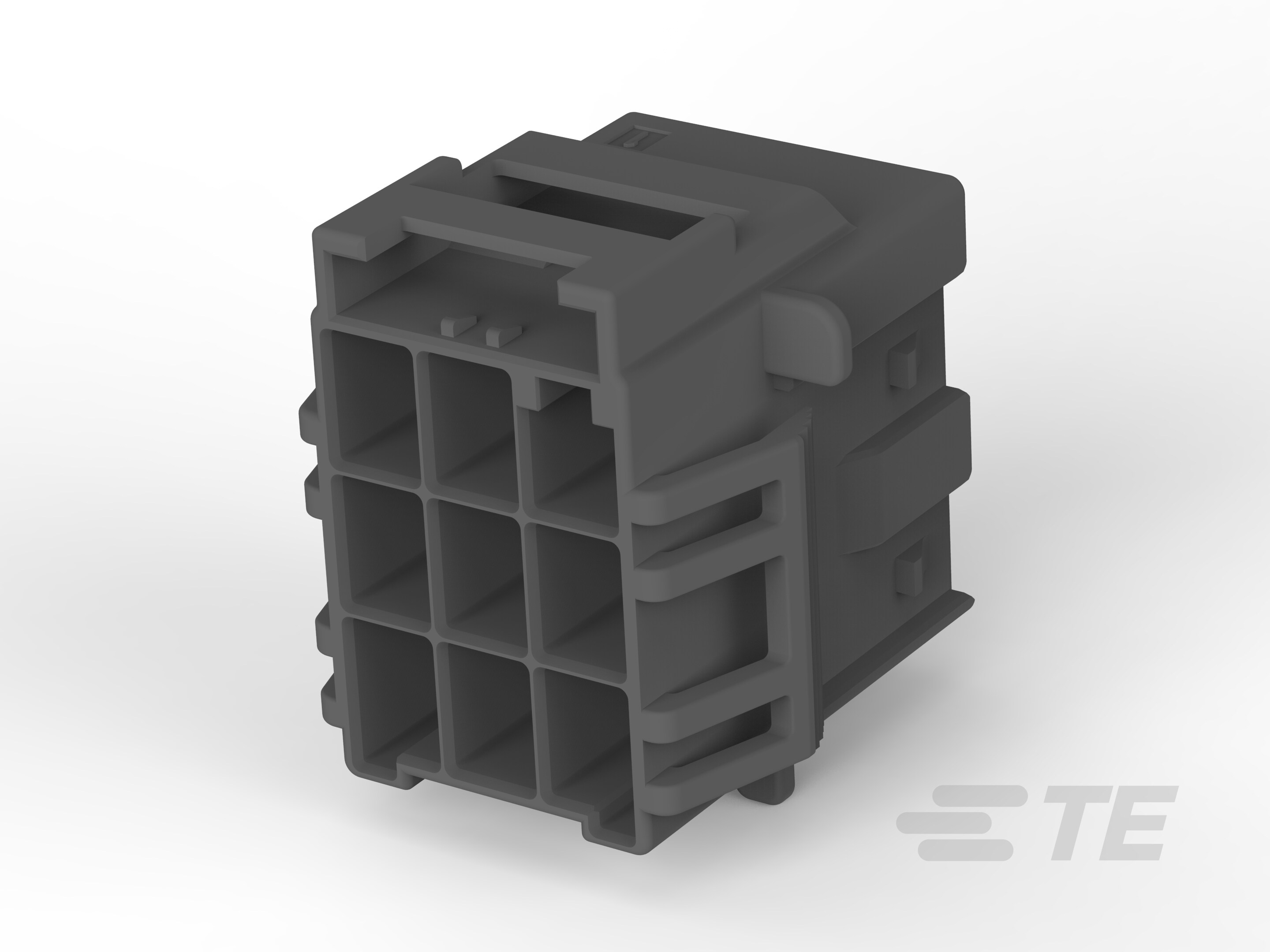

Specification	5-2232356-3

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Lock
Insulation Material	Nylon 6, Glass Filled, Polyamide (PA6)
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	9
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.236 in
Row Spacing	0.319 in

2232356 Series

RF Connectors / Coaxial Connectors 2x5 cap housing free hanging Key D ora

Part	Note	Insulation Material	Row Spacing	Number of Rows	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Type	Contact Termination	Fastening Type	Pitch	Number of Positions	Color	Connector Type
TE Connectivity AMP Connectors 7-2232356-3	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	0.319 in	3	Through Hole	-55 °C	105 °C	Cap (Cover)	Male Pin	Crimp	Latch Holder	0.236 in	9	Green	Plug
TE Connectivity AMP Connectors 7-2232356-7	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	0.319 in	3	Through Hole	-55 °C	105 °C	Cap (Cover)	Male Pin	Crimp	Latch Holder	0.236 in	15	Green	Plug
TE Connectivity AMP Connectors 5-2232356-3	Contacts Not Included	Glass Filled Nylon 6 Polyamide (PA6)	0.319 in	3	Panel Mount Snap-In	-55 °C	105 °C		Tab	Crimp	Latch Lock	0.236 in	9	Gray	Receptacle
TE Connectivity AMP Connectors 6-2232356-7	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	0.319 in	3	Through Hole	-55 °C	105 °C	Cap (Cover)	Male Pin	Crimp	Latch Holder	0.236 in	15	Brown	Plug
TE Connectivity AMP Connectors 7-2232356-4	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	0.319 in	3	Through Hole	-55 °C	105 °C	Cap (Cover)	Male Pin	Crimp	Latch Holder	0.236 in	12	Green	Plug
