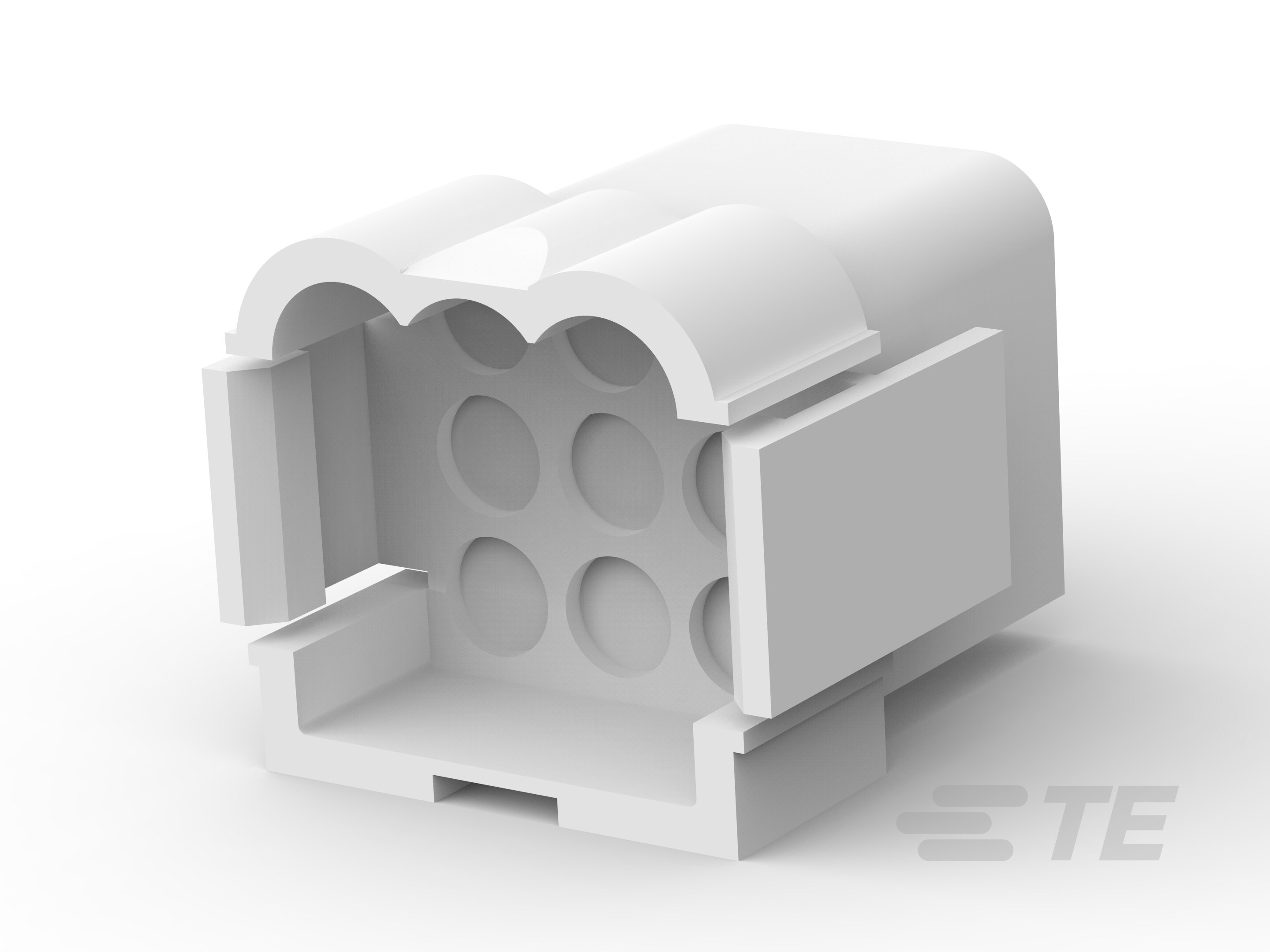

Specification	1-480673-0

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount
Number of Positions	9
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.24 in
Row Spacing	0.24 in

Commercial MATE-N-LOK Series

...
