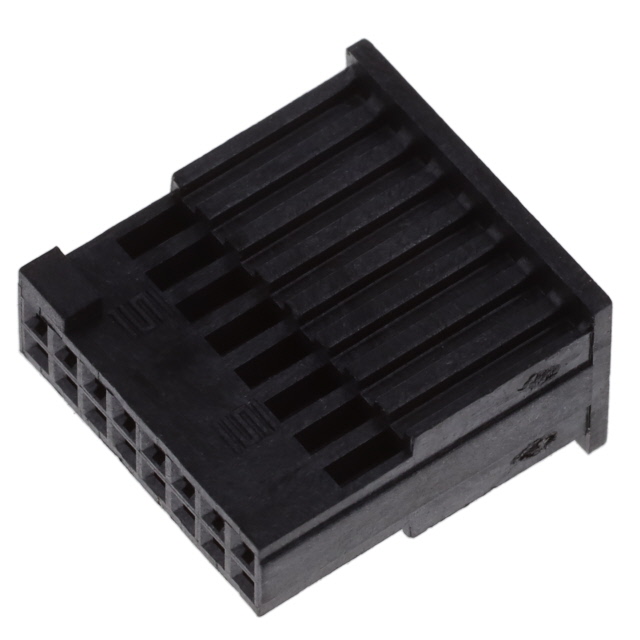

ISDF-08-D
ActiveSamtec Inc.
CONN INSULATOR HSG 16POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
ISDF-08-D
ActiveSamtec Inc.
CONN INSULATOR HSG 16POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISDF-08-D |
|---|---|
| Color | Black |
| Connector Type | Insulator |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.96 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.42 | |||
| 50 | $ 3.17 | |||
| 100 | $ 2.94 | |||
| 250 | $ 2.67 | |||
| 500 | $ 2.48 | |||
| 1000 | $ 2.32 | |||
| 2500 | $ 2.12 | |||
Description
General part information
ISDF-08 Series
16 Rectangular Connectors - Housings Insulator Black 0.050" (1.27mm)
