M3DDK-2636J
Active3M
IDC CABLE - MKR26K/MC26G/MKR26K
Deep-Dive with AI
Search across all available documentation for this part.
M3DDK-2636J
Active3M
IDC CABLE - MKR26K/MC26G/MKR26K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3DDK-2636J | M3DDK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length | - | 1.52 - 508 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length | - | 1.67 - 5 ft |
| Length [x] | 3 ft | 1.5 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 26 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3DDK Series
IDC CABLE - MKR16K/MC16G/MKR16K
| Part | Number of Rows | Connector Type | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Length | Length | Length | Shielding | Number of Positions | Features | Length [x] | Length [x] | Number of Positions | Color | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | 152.4 mm | 6 " | 0.5 ' | Unshielded | 16 | Polarizing Key, Strain Relief | ||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | Unshielded | 16 | Polarizing Key, Strain Relief | 3 ft | 914.4 mm | |||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | Unshielded | Polarizing Key, Strain Relief | 1.5 ft | 457.2 mm | 24 | |||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | Unshielded | Polarizing Key, Strain Relief | 1.5 ft | 457.2 mm | 30 | |||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | Unshielded | Polarizing Key, Strain Relief | 3 ft | 914.4 mm | 26 | Multiple, Ribbon | ||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | 508 mm | Unshielded | Polarizing Key, Strain Relief | 34 | Multiple, Twisted Pair (Flat) | 1.67 ft | ||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | 508 mm | Unshielded | Polarizing Key, Strain Relief | 60 | Multiple, Twisted Pair (Flat) | 1.67 ft | ||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | Unshielded | Polarizing Key, Strain Relief | 1.5 ft | 457.2 mm | 40 | Multiple, Ribbon | ||||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | 152.4 mm | 6 " | 0.5 ' | Unshielded | 16 | Polarizing Key, Strain Relief | Multiple, Ribbon | |||||
2 | Socket to Socket | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Gold | 0.76 Ám | 30 Áin | IDC | 152.4 mm | 6 " | 0.5 ' | Unshielded | Polarizing Key, Strain Relief | 20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.55 | |
| 10 | $ 15.83 | |||
| 25 | $ 14.32 | |||
| 50 | $ 13.31 | |||
| 100 | $ 12.38 | |||
| 250 | $ 11.30 | |||
| 500 | $ 10.57 | |||
| 1000 | $ 9.99 | |||
Description
General part information
M3DDK Series

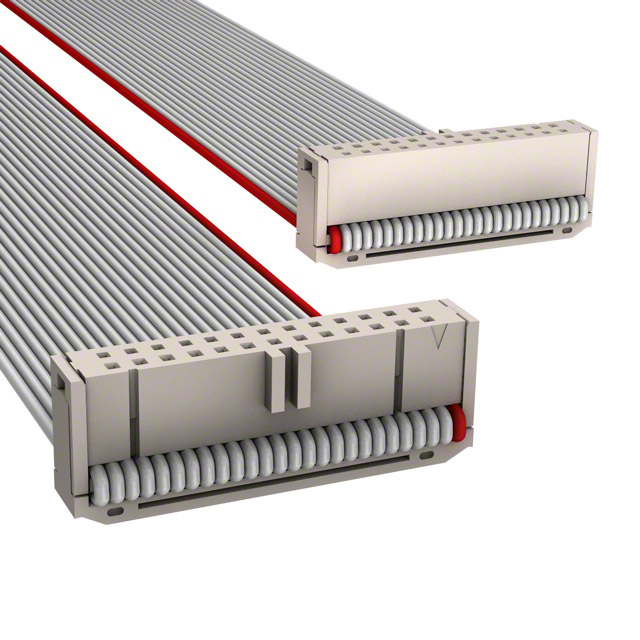

26 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
