M3DDK-1606J

Active

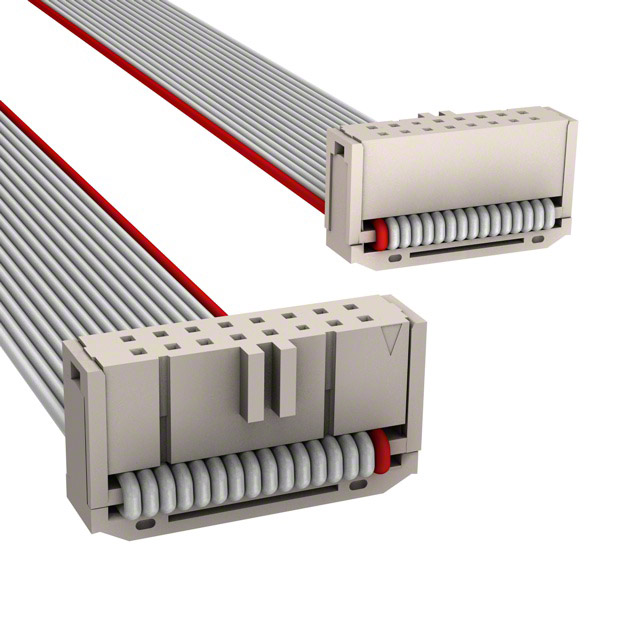

IDC CABLE - MKR16K/MC16G/MKR16K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3365 Series Datasheet +1

M3DDK-1606J

Active

IDC CABLE - MKR16K/MC16G/MKR16K

Deep-Dive with AI

DocumentsDatasheet 3365 Series Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.72
		10	$ 10.55
		25	$ 9.53
		50	$ 8.85
		100	$ 8.23
		250	$ 7.49
		500	$ 7.00
		1000	$ 6.55

Description

General part information

M3DDK Series

16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Datasheet

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3DDK-1606J	M3DDK Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length	152.4 mm	1.52 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.5 - 3.34 ft
Length	-	1.02 - 914.4 mm
Length	-	1.67 - 5 ft
Number of Positions	16	16
Number of Positions	-	10 - 60
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3DDK Series

IDC CABLE - MKR16K/MC16G/MKR16K

Part	Number of Rows	Connector Type	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Length	Length	Length	Shielding	Number of Positions	Features	Length [x]	Length [x]	Number of Positions	Color	Length
3M M3DDK-1606J	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC	152.4 mm	6 "	0.5 '	Unshielded	16	Polarizing Key, Strain Relief
3M M3DDK-1636J	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC				Unshielded	16	Polarizing Key, Strain Relief	3 ft	914.4 mm
3M M3DDK-2418J	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC				Unshielded		Polarizing Key, Strain Relief	1.5 ft	457.2 mm	24
3M M3DDK-3018J	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC				Unshielded		Polarizing Key, Strain Relief	1.5 ft	457.2 mm	30
3M M3DDK-2636R	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC				Unshielded		Polarizing Key, Strain Relief	3 ft	914.4 mm	26	Multiple, Ribbon
3M M3DDK-3420K	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC	508 mm			Unshielded		Polarizing Key, Strain Relief			34	Multiple, Twisted Pair (Flat)	1.67 ft
3M M3DDK-6020K	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC	508 mm			Unshielded		Polarizing Key, Strain Relief			60	Multiple, Twisted Pair (Flat)	1.67 ft
3M M3DDK-4018R	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC				Unshielded		Polarizing Key, Strain Relief	1.5 ft	457.2 mm	40	Multiple, Ribbon
3M M3DDK-1606R	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC	152.4 mm	6 "	0.5 '	Unshielded	16	Polarizing Key, Strain Relief				Multiple, Ribbon
3M M3DDK-2006J	2	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	Gold	0.76 Ám	30 Áin	IDC	152.4 mm	6 "	0.5 '	Unshielded		Polarizing Key, Strain Relief			20
