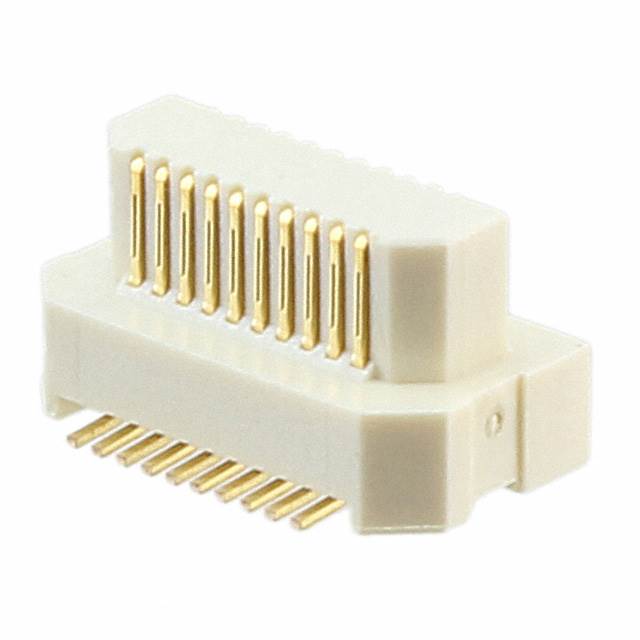

AXK6S20547YG
ActivePanasonic Electric Works
CONN HDR 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK6S20547YG
ActivePanasonic Electric Works
CONN HDR 20POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK6S20547YG |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.169 in |
| Height Above Board | 4.3 mm |
| Mated Stacking Heights | 5.5 mm, 8 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.41 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.07 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.87 | |||
| Digi-Reel® | 1 | $ 1.41 | ||
| 10 | $ 1.19 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.07 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.87 | |||
| Tape & Reel (TR) | 1000 | $ 0.78 | ||
| 2000 | $ 0.73 | |||
| 3000 | $ 0.70 | |||
| 5000 | $ 0.68 | |||
| 10000 | $ 0.64 | |||
Description
General part information
AXK6S20547 Series
20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
