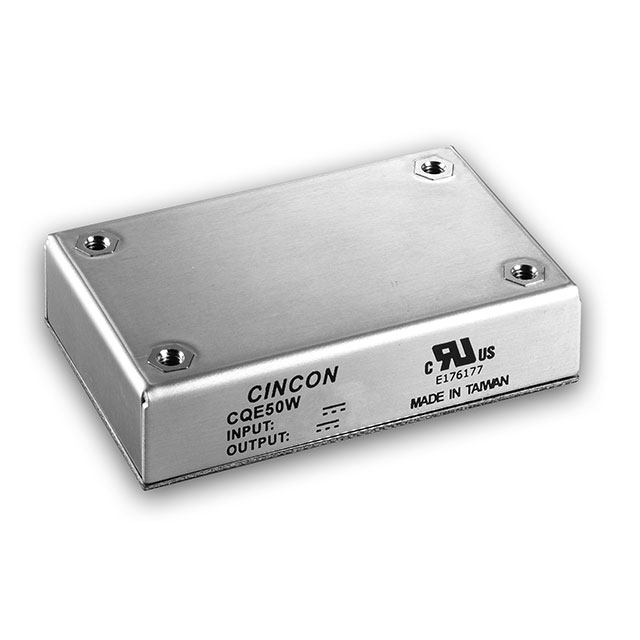

CQE50W-48S12N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 12V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CQE50W-48S12N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 12V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CQE50W-48S12N

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active Low, Enable
Current - Output (Max) [Max]	4.16 A
Efficiency	92 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power (Watts)	50 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

CQE50W Series

Part	Features	Mounting Type	Standard Number	Control Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Efficiency	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Supplier Device Package	Voltage - Input (Max) [Max]	Number of Outputs	Approval Agency
Cincon Electronics Co. LTD CQE50W-48S48	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	89 %	ITE (Commercial)	18 V	1.04 A	1.5 kV	48 V	Module	75 V	1	CE
Cincon Electronics Co. LTD CQE50W-24S15	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	91.5 %	ITE (Commercial)	9 V	3.33 A	1.5 kV	15 V	Module	36 V	1	CE
Cincon Electronics Co. LTD CQE50W-24S48	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	88.5 %	ITE (Commercial)	9 V	1.04 A	1.5 kV	48 V	Module	36 V	1	CE
Cincon Electronics Co. LTD CQE50W-48S12N	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active Low Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	92 %	ITE (Commercial)	18 V	4.16 A	1.5 kV	12 V		75 V	1	CE
Cincon Electronics Co. LTD CQE50W-48S12	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	92 %	ITE (Commercial)	18 V	4.16 A	1.5 kV	12 V	Module	75 V	1	CE
Cincon Electronics Co. LTD CQE50W-24S12	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	91.5 %	ITE (Commercial)	9 V	4.16 A	1.5 kV	12 V	Module	36 V	1	CE
Cincon Electronics Co. LTD CQE50W-24S3V3	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	33 W	-40 °C	105 C	Isolated Module	Module	90.5 %	ITE (Commercial)	9 V	10 A	1.5 kV	3.3 V	Module	36 V	1	CE
Cincon Electronics Co. LTD CQE50W-24S48N	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active Low Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	88.5 %	ITE (Commercial)	9 V	1.04 A	1.5 kV	48 V		36 V	1	CE
Cincon Electronics Co. LTD CQE50W-24S24	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	90 %	ITE (Commercial)	9 V	2.08 A	1.5 kV	24 V	Module	36 V	1	CE
Cincon Electronics Co. LTD CQE50W-24S05	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	60950-1	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	50 W	-40 °C	105 C	Isolated Module	Module	91.5 %	ITE (Commercial)	9 V	10 A	1.5 kV	5 V	Module	36 V	1	CE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 85.00

Description

General part information

CQE50W Series

Isolated Module DC DC Converter 1 Output 12V 4.16A 18V - 75V Input
