Q-2I0680005084i

Active

Amphenol Custom Cable

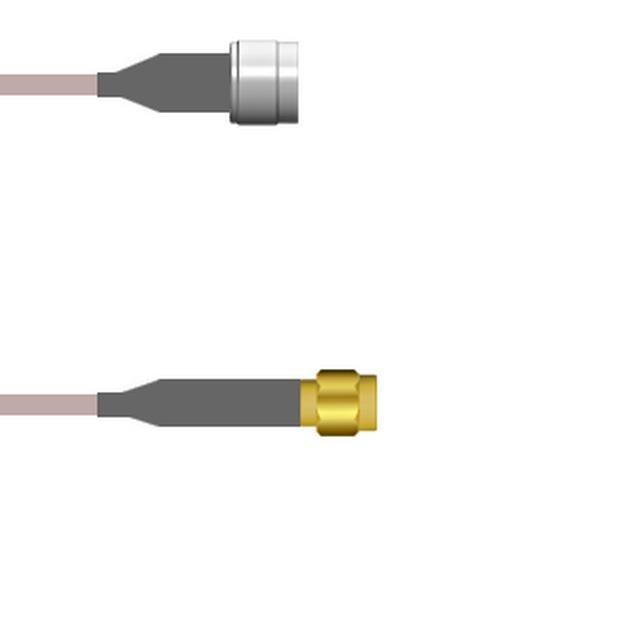

CBL ASSY RPSMA-NTYPE PLUG-PLG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I0680005084i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE PLUG-PLG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I0680005084i

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-2I0680 Series

Part	Features	Frequency - Max [Max]	Length [x]	Length [x]	Cable Type	2nd Contact Gender	1st Connector	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	2nd Connector	Color	Overall Impedance	Style	Length	Length	Length
Amphenol Custom Cable Q-2I0680003018i	Shielded	11 GHz	457.2 mm	457.2 mm	RG-174	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Black	50 Ohms	RP-SMA to N-Type
Amphenol Custom Cable Q-2I0680005024i	Shielded	11 GHz			RG-316	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Copper	50 Ohms	RP-SMA to N-Type	24 "	609.6 mm
Amphenol Custom Cable Q-2I0680003002M	Shielded	11 GHz			RG-174	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Black	50 Ohms	RP-SMA to N-Type	78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-2I06800052.5M	Shielded	11 GHz			RG-316	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Copper	50 Ohms	RP-SMA to N-Type	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-2I0680003060i	Shielded	11 GHz			RG-174	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Black	50 Ohms	RP-SMA to N-Type	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-2I0680005003i	Shielded	11 GHz			RG-316	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Copper	50 Ohms	RP-SMA to N-Type	3 in	76.2 mm
Amphenol Custom Cable Q-2I0680005084i	Shielded	11 GHz			RG-316	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Copper	50 Ohms	RP-SMA to N-Type	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2I0680005012i	Shielded	11 GHz			RG-316	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Copper	50 Ohms	RP-SMA to N-Type	12 "	304.8 mm
Amphenol Custom Cable Q-2I0680003009i	Shielded	11 GHz			RG-174	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Black	50 Ohms	RP-SMA to N-Type	9 "	228.6 mm
Amphenol Custom Cable Q-2I0680003006i	Shielded	11 GHz			RG-174	Male	RP-SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type Plug	Black	50 Ohms	RP-SMA to N-Type	6 in	152.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 123.19
		25	$ 120.78
		50	$ 118.36
		100	$ 115.95
		250	$ 113.54

Description

General part information

Q-2I0680 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-316 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
