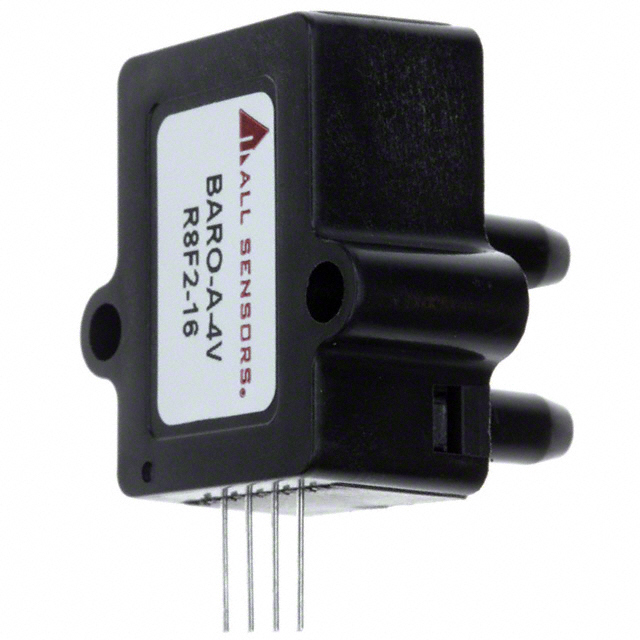

Specification	BARO-A-4V-MINI

Accuracy	2 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Mounting Type	Through Hole
Operating Pressure (Max)	15.95 PSI
Operating Pressure (Min)	8.7 PSI
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Output Type	Analog Voltage
Output Voltage (Max)	4.25 V
Output Voltage (Min)	0.25 V
Package / Case	4-SIP Module
Port Diameter	0.08 in
Port Feature	Tube, Dual
Port Gender	Male
Port Style	Barbless
Pressure Type	Absolute
Termination Style	PC Pin
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.5 V

BARO-A Series

Part	Operating Pressure (Max)	Operating Pressure (Min)	Voltage - Supply	Package / Case	Termination Style	Applications	Features	Pressure Type	Output Voltage (Min)	Output Voltage (Max)	Mounting Type	Maximum Pressure	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Accuracy	Port Style	Port Diameter	Port Feature	Port Gender	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
McGill Microwave Systems BARO-A-PRIME-MINI	15.95 PSI	8.7 PSI	16 V	4-SIP Module	PC Pin	Board Mount	Temperature Compensated	Absolute	52.2 mV	95.7 mV	Through Hole	45 PSI	85 °C	-25 °C	Wheatstone Bridge	2 %	No Port
McGill Microwave Systems BARO-A-4V-PRIME-REF	15.95 PSI	8.7 PSI		4-SIP		Board Mount	Temperature Compensated	Absolute	0 V	4.25 V	Through Hole	60 PSI	125 °C	-40 °C	Analog Voltage	2 %	Barbless	0.19 "	Dual Tube	Male	16 V	5.5 V
McGill Microwave Systems BARO-A-4V-MIL	15.95 PSI	8.7 PSI		4-SIP Module	PC Pin	Board Mount	Amplified Output Temperature Compensated	Absolute	0.25 V	4.25 V	Through Hole	60 PSI	125 °C	-40 °C	Analog Voltage	2 %	Barbless	0.19 "	Dual Tube	Male	5.5 V	4.5 V
McGill Microwave Systems BARO-A-4V-MINI-PRIME	15.95 PSI	8.7 PSI		4-SIP Module	PC Pin	Board Mount	Amplified Output Temperature Compensated	Absolute	0.25 V	4.25 V	Through Hole		85 °C	-25 °C	Analog Voltage	2 %	Barbless	0.08 in	Dual Tube	Male	5.5 V	4.5 V
McGill Microwave Systems BARO-A-4V-MINI	15.95 PSI	8.7 PSI		4-SIP Module	PC Pin	Board Mount	Amplified Output Temperature Compensated	Absolute	0.25 V	4.25 V	Through Hole		85 °C	-25 °C	Analog Voltage	2 %	Barbless	0.08 in	Dual Tube	Male	5.5 V	4.5 V
McGill Microwave Systems BARO-A-4V-PRIME	15.95 PSI	8.7 PSI		4-SIP Module	PC Pin	Board Mount	Amplified Output Temperature Compensated	Absolute	0.25 V	4.25 V	Through Hole	60 PSI	125 °C	-40 °C	Analog Voltage	2 %	Barbless	0.08 in	Dual Tube	Male	5.5 V	4.5 V
McGill Microwave Systems BARO-A-4V-REF-PRIME	15.95 PSI	8.7 PSI		4-SIP		Board Mount	Temperature Compensated	Absolute	0 V	4.25 V	Through Hole	60 PSI	125 °C	-40 °C	Analog Voltage	2 %	Barbless	0.19 "	Dual Tube	Male	16 V	5.5 V
