Q-0104C0001108i

Active

Amphenol Custom Cable

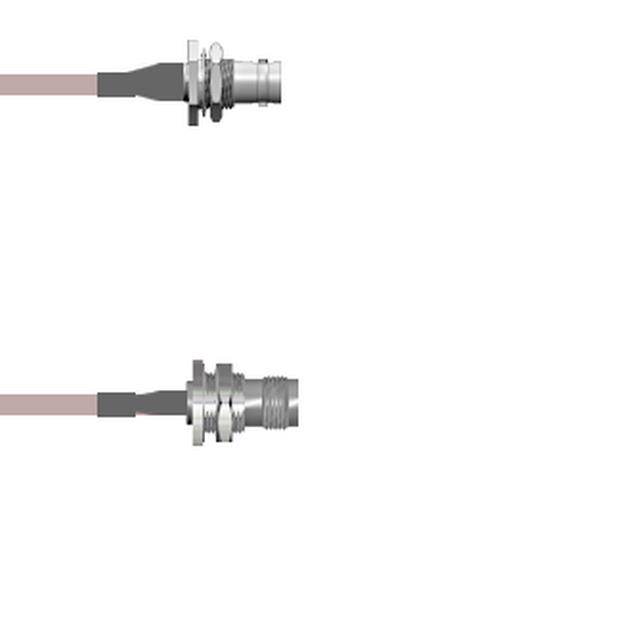

CBL ASSY BNC-TNC JACK-JACK 9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-JACK 9'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to TNC RG-178 108.0" (2.7m) 9.0'

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	Q-0104C0001108i	Q-0104C0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	TNC Jack	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	2.7 m	1.8 - 304.8 mm
Length	9 ft	6 - 9 ft
Length	108 in	12 - 108 "
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to TNC	BNC to TNC

COAX CBL BNC TO TNC 12"

Part	2nd Connector Mounting Type	Color	Cable Type	1st Connector Mounting Feature	Frequency - Max [Max]	Overall Impedance	Length	Length	Style	1st Connector Mounting Type	2nd Connector	1st Connector	Features	2nd Contact Gender	2nd Connector Mounting Feature	1st Contact Gender	Length
Amphenol Custom Cable Q-0104C0001012i	Panel Mount	Copper	RG-178	Bulkhead - Front Side Nut	4 GHz	50 Ohms	12 "	304.8 mm	BNC to TNC	Panel Mount	TNC Jack	BNC Jack	Shielded	Female	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0104C0001108i	Panel Mount	Copper	RG-178	Bulkhead - Front Side Nut	4 GHz	50 Ohms	108 in	2.7 m	BNC to TNC	Panel Mount	TNC Jack	BNC Jack	Shielded	Female	Bulkhead - Front Side Nut	Female	9 ft
Amphenol Custom Cable Q-0104C0001072i	Panel Mount	Copper	RG-178	Bulkhead - Front Side Nut	4 GHz	50 Ohms	72 in	1.8 m	BNC to TNC	Panel Mount	TNC Jack	BNC Jack	Shielded	Female	Bulkhead - Front Side Nut	Female	6 ft
