MWSEA2-2-19

Active

Essentra Access Solutions

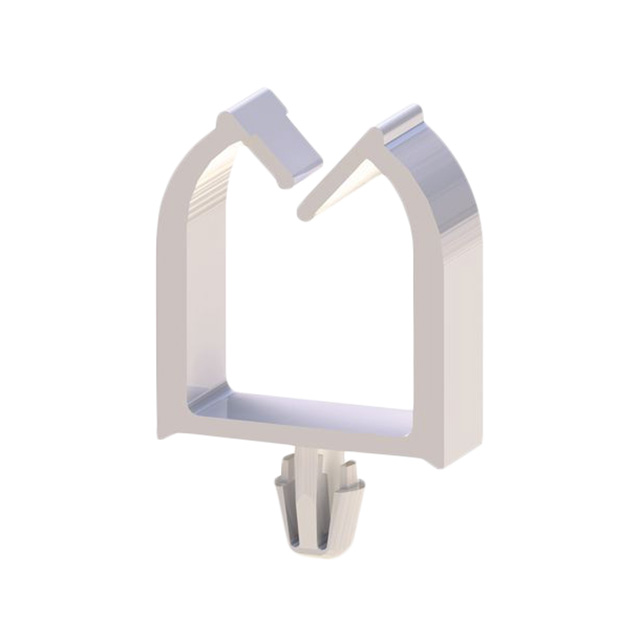

FASTENER, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 10.8 MM, 4 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 10.8 MM, 4 MM

Technical Specifications

Parameters and characteristics for this part

Specification	MWSEA2-2-19

Color	Natural
Features	Flame Retardant
Height [z]	0.36 in
Height [z]	9.14 mm
Length	10.67 mm
Length	0.42 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Arrowhead
Panel Hole Size [x]	0.138 in
Panel Hole Size [x]	3.51 mm
Panel Thickness	0.063 in
Panel Thickness	1.6 mm
Type	Clip, Wire Saddle
Type Attributes	Micro
Width [x]	4.06 mm
Width [x]	0.16 "

Part	Height [z]	Height [z]	Color	Material	Type Attributes	Panel Thickness	Panel Thickness	Panel Hole Size [x]	Panel Hole Size [x]	Mounting Type	Features	Material Flammability Rating	Length	Length	Width [x]	Width [x]	Type	Length [x]	Length [x]	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Opening Size [z]	Opening Size [z]
Essentra Access Solutions MWSEA2-2-19	0.36 in	9.14 mm	Natural	Polyamide (PA66) Nylon 6/6	Micro	0.063 in	1.6 mm	0.138 in	3.51 mm	Arrowhead	Flame Retardant	UL94 V-0	10.67 mm	0.42 "	4.06 mm	0.16 "	Clip Wire Saddle
Essentra Access Solutions MWSEA2-1-19	0.29 in	7.36 mm	Natural	Polyamide (PA66) Nylon 6/6	Micro	0.063 in	1.6 mm	0.138 in	3.51 mm	Arrowhead	Flame Retardant	UL94 V-0			4.06 mm	0.16 "	Clip Wire Saddle	0.36 in	9.14 mm	3.05 mm	6.6 mm	0.26 in	0.12 in
Essentra Access Solutions MWSEA2-1-4-19	0.51 "	12.95 mm	Natural	Polyamide (PA66) Nylon 6/6	Micro	0.093 in	2.36 mm	0.138 in	3.51 mm	Arrowhead	Flame Retardant	UL94 V-0	11.94 mm	0.47 in	4.06 mm	0.16 "	Clip Wire Saddle				9.14 mm	0.36 in		7.62 mm	0.3 in
Essentra Access Solutions MWSEA2-1-2-01	0.36 in	9.14 mm	Natural	Polyamide (PA66) Nylon 6/6	Micro	0.093 in	2.36 mm	0.138 in	3.51 mm	Arrowhead		UL94 V-2	10.67 mm	0.42 "	4.06 mm	0.16 "	Clip Wire Saddle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead 0.320" L x 0.160" H (8.13mm x 4.06mm)
