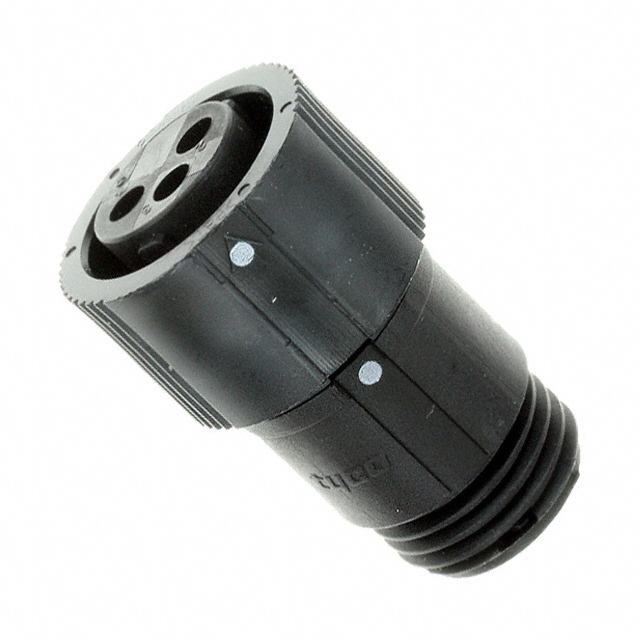

1445534-3
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG FMALE 3POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1445534-3
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG FMALE 3POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1445534-3 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Shell Size - Insert | 8-3 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.33 | |
| 10 | $ 9.62 | |||
| 25 | $ 9.02 | |||
| 50 | $ 8.59 | |||
| 100 | $ 8.18 | |||
| 300 | $ 7.57 | |||
| 500 | $ 7.30 | |||
| 1000 | $ 6.95 | |||
Description
General part information
1445534 Series
3 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
