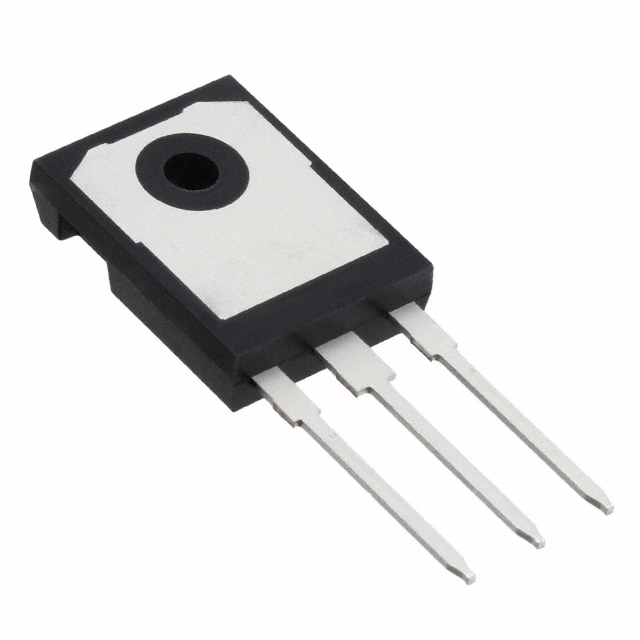

IXYH16N170C

Active

IXYS

IGBT 1.7KV 40A TO247

Search across all available documentation for this part.

Active

IXYS

IGBT 1.7KV 40A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	IXYH16N170C

Current - Collector (Ic) (Max) [Max]	40 A
Current - Collector Pulsed (Icm)	100 A
Gate Charge	56 nC
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	310 W
Reverse Recovery Time (trr)	19 ns
Supplier Device Package	TO-247 (IXYH)
Switching Energy	2.1 mJ, 1.5 mJ
Td (on/off) @ 25°C	11 ns, 140 ns
Test Condition	15 V, 16 A, 850 V, 10 Ohm
Vce(on) (Max) @ Vge, Ic	3.8 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Collector Pulsed (Icm)	Current - Collector (Ic) (Max) [Max]	Switching Energy	Reverse Recovery Time (trr)	Package / Case	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Td (on/off) @ 25°C	Test Condition	Gate Charge	Power - Max [Max]
IXYS IXYH16N170C	-55 °C	175 ░C	TO-247 (IXYH)	100 A	40 A	1.5 mJ 2.1 mJ	19 ns	TO-247-3	3.8 V	1700 V	Through Hole	11 ns 140 ns	10 Ohm 15 V 16 A 850 V	56 nC	310 W
IXYS IXYH16N170CV1	-55 °C	175 ░C	TO-247 (IXYH)	100 A	40 A	1.5 mJ 2.1 mJ	150 ns	TO-247-3	3.8 V	1700 V	Through Hole	11 ns 140 ns	10 Ohm 15 V 16 A 850 V	56 nC	310 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 1700 V 40 A 310 W Through Hole TO-247 (IXYH)
