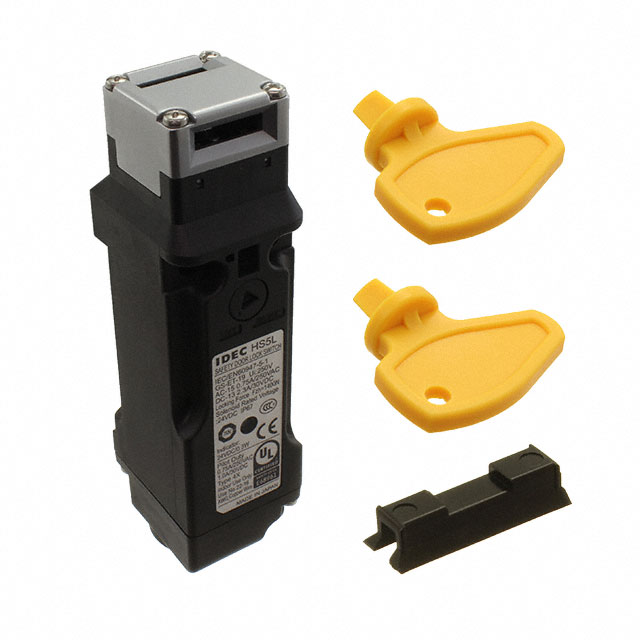

HS5L-VJ44M-G

Active

IDEC Corporation

INTERLOCK SOLENOID RELEASE 3PST

Deep-Dive with AI

Search across all available documentation for this part.

HS5L-VJ44M-G

Active

IDEC Corporation

INTERLOCK SOLENOID RELEASE 3PST

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 166.07
		5	$ 148.56

Description

General part information

HS5L Series

INTERLOCK SOLENOID RELEASE 3PST

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS5L-VJ44M-G	HS5L Series

Actuator Type	Panel Disconnect	Panel Disconnect
Approval Agency	TUV, CE, UL, CCC	TUV, CE, UL, CCC
Circuit	3PST-2NC/1NO, SPST-NC	DPST-NC, DPST-NO/NC, DPST-NO/NC x 2, 3PST-NC, SPST-NC, DPST-NC x 2, 3PST-2NC/1NO
Current Rating (Amps)	2.5 A	2.5 A
Holding Force	143 kgf	143 kgf
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Termination Style	Spring Terminal	Spring Terminal
Type	Solenoid Release	Solenoid Release, Solenoid Locking
Voltage - Supply	24 VDC	24 VDC
Voltage Rating	125 VAC, 30 VDC	30 - 125 VAC

HS5L Series

SAFETY INTERLOCK SWITCH, HS5L SERIES, SPST-NO, 3PST-NC, SPRING CLAMP, 125 V, 2.5 A, IP67

Part	Type	Voltage - Supply	Holding Force	Ingress Protection	Circuit	Current Rating (Amps)	Termination Style	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Approval Agency
IDEC Corporation HS5L-VC44M-G	Solenoid Release	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	DPST-NC, DPST-NO/NC	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VA44LM-G	Solenoid Release	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	DPST-NO/NC x 2	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VF7Y4M-G	Solenoid Locking	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	3PST-NC, SPST-NC	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VD44LM-G	Solenoid Release	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	DPST-NC x 2	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VD44M-G	Solenoid Release	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	DPST-NC x 2	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VD7Y4M-G	Solenoid Locking	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	DPST-NC x 2	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VC7Y4M-G	Solenoid Locking	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	DPST-NC, DPST-NO/NC	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VF7Y4SM-G	Solenoid Locking		143 kgf	IP67 - Dust Tight, Waterproof	3PST-NC, SPST-NC	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VJ44M-G	Solenoid Release	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	3PST-2NC/1NO, SPST-NC	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
IDEC Corporation HS5L-VG44M-G	Solenoid Release	24 VDC	143 kgf	IP67 - Dust Tight, Waterproof	3PST-2NC/1NO, SPST-NC	2.5 A	Spring Terminal	30 VDC, 125 VAC	55 °C	-25 °C	Panel Disconnect	CCC, CE, TUV, UL
